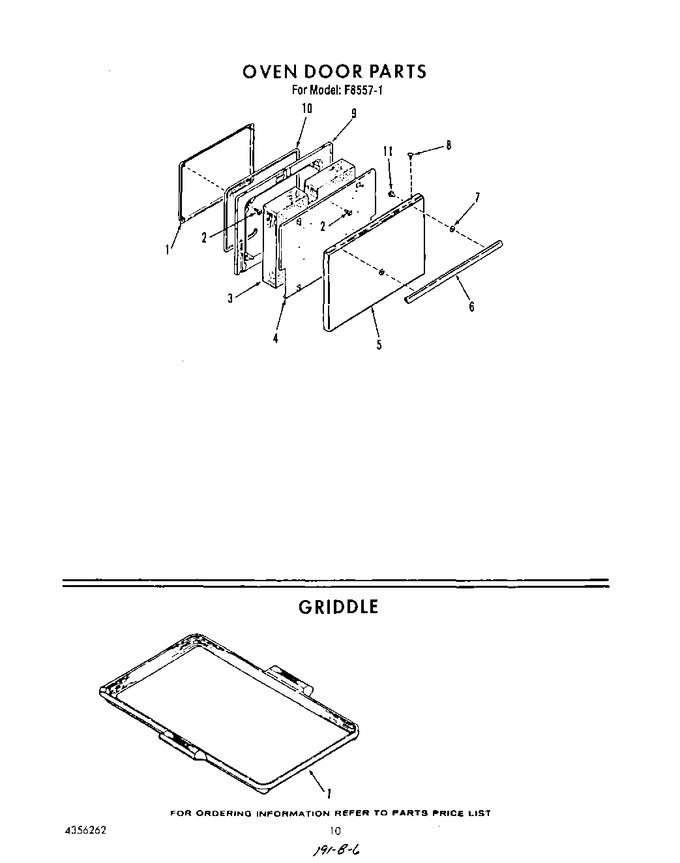

08 - Oven Door , Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4337956 | Plug, Door |
|
- | |||||
| 1 | 4326773 | Griddle, Set-on |
|
- | |||||
| 2 | WP681414 | Screw, No.10-16 X 7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 3 | 4354952 | Insulation |
|
- | |||||
| 4 | 4335004 | Retainer, Insulation |
|
- | |||||
| 5 | 4336988 | Panel, Outer (almond) |
|
- | |||||
| 5 | 4336987 | Panel, Outer (white) |
|
- | |||||
| 6 | 4337344 | Handle |
|
- | |||||
| 7 | 4323997 | Spacer |
|
- | |||||
| 8 | 4337623 | Screw, No.10-32 X 1/2 |
|
- | |||||
| 9 | 4336608 | Lining |
|
- | |||||
| 10 | 4342564 | Gasket, Door |
|
- | |||||
| 11 | 4323778 | Screw, No.10-32 X 1/2 |
|
- |
