Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 338150 Backguard Body Appelez-nous -
2 327320 Screw 10-16x7/16`` Appelez-nous -
3 334161 Right Appelez-nous -
3 334162 Left Appelez-nous -
4 337975 Backguard Clip Appelez-nous -
5 334337 Right Appelez-nous -
5 334338 Left Appelez-nous -
6 326974 Screw 10abx1/2`` Appelez-nous -
7 336529 Screw Appelez-nous -
8 78153 Screw 6-32x5/16`` Appelez-nous -
9 336931 Clock Asm W/lens Appelez-nous -
10 334649 Oven Light Switch Appelez-nous -
11 336660 Backguard Lower Front Panel Appelez-nous -
12 334045 Clock Knob Appelez-nous -
13 331705 Lens-indicator Light Appelez-nous -
14 331716 Indicator Light Appelez-nous -
15 102429 Screw 10 - 32 X 3/8`` Appelez-nous -
16 335977 Cleat Appelez-nous -
17 335776 Pal Nut Appelez-nous -
18 335674 Control Panel Appelez-nous -
336943 Xclock Lens Appelez-nous -

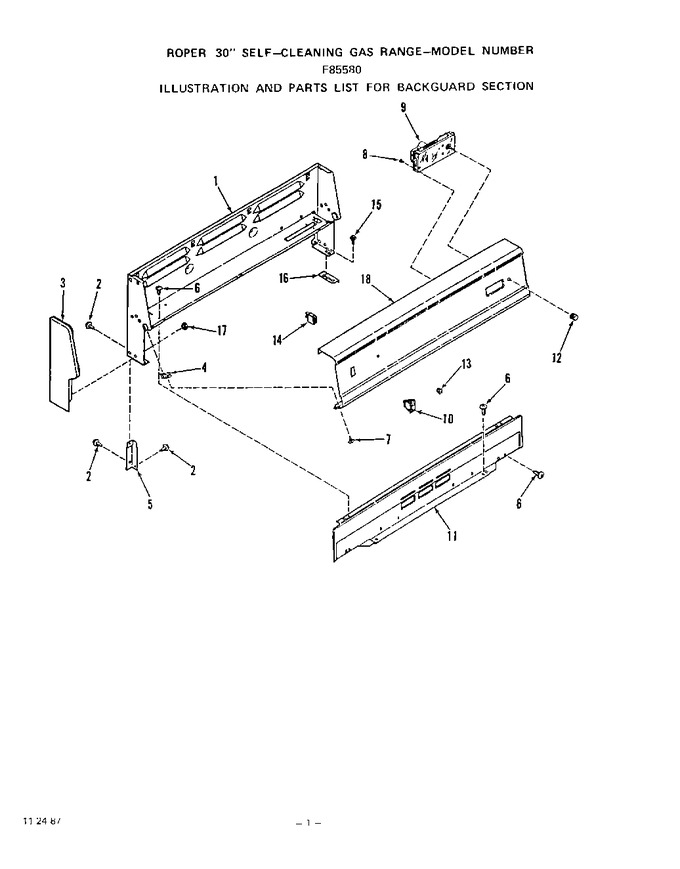

    View Diagram in Separate Window     Print Icon   Print Part List
