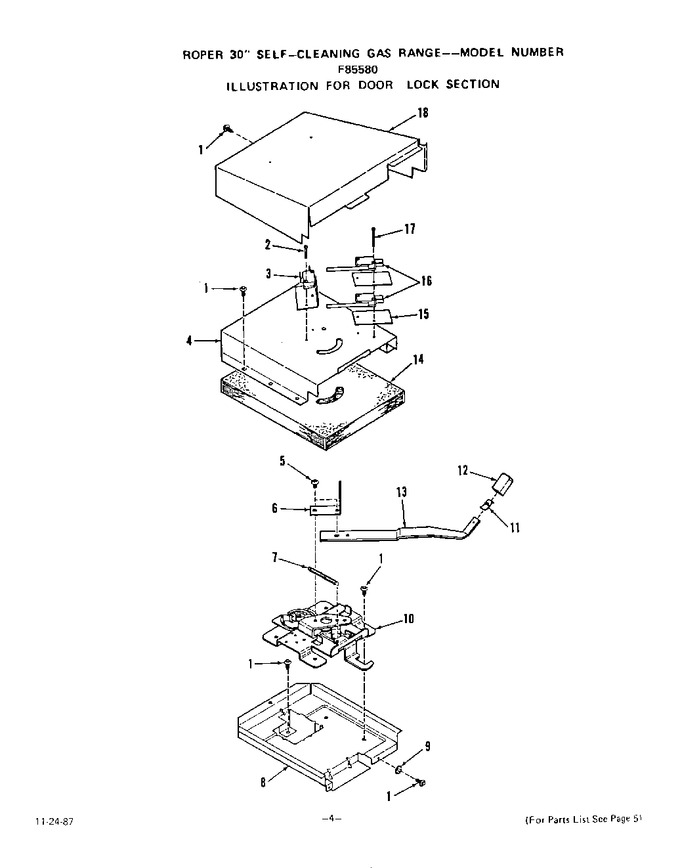

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	328956		Screw 4-40x11/16``		Appelez-nous	-
3	329170		Micro Switch		Appelez-nous	-
4	333628		Cover-lock Box		Appelez-nous	-
5	288248		Screw 10-24x1/4``		Appelez-nous	-
6	335984		Extension-handle		Appelez-nous	-
7	313075		Spring		Appelez-nous	-
8	333627		Lock Box		Appelez-nous	-
9	21067		Washer		Appelez-nous	-
10	328656		Latch Assm. (inc`s. Key 7)		Appelez-nous	-
11	328474		Clip-knob		Appelez-nous	-
12	335738		Knob-lock		Appelez-nous	-
13	333710		Handle-latch		Appelez-nous	-
14	328472		Insulation-latch		Appelez-nous	-
15	329171		Insulator-switch (3 Req)		Appelez-nous	-
16	329169		Micro Switch		Appelez-nous	-
17	331081		Screw 4-40 X1 9/16``		Appelez-nous	-
18	333694		Wire Cover-latch Switches		Appelez-nous	-
