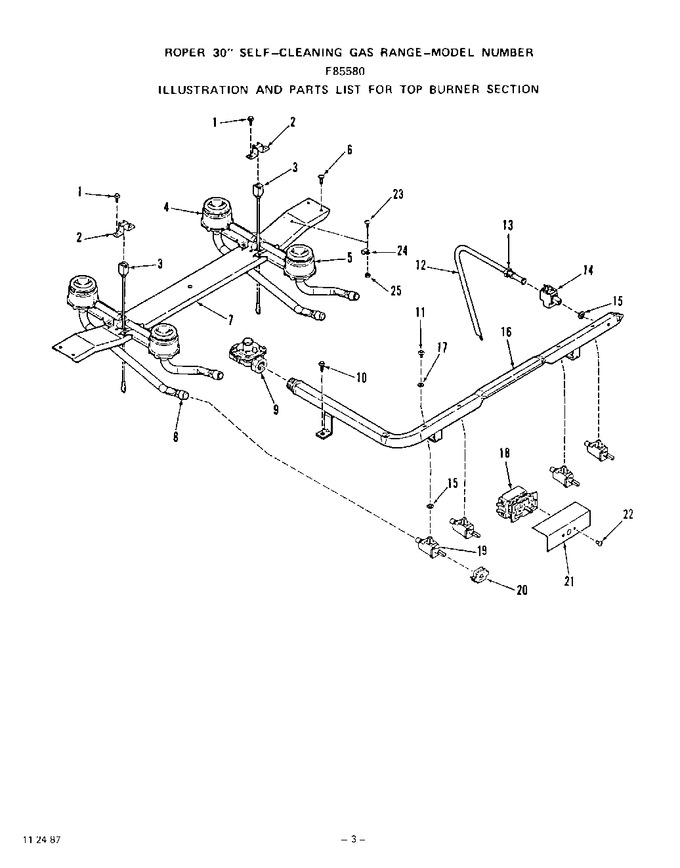

04 - Top Burner
05 - Door Lock
06 - Oven Body
07 - Broiler And Oven Burner
08 - Oven Door
09 - Wiring Harness And Components , Gri
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 97217 | Screw 8 - 32x3/8`` |
|
- | |||||
| 2 | 312453 | Bracket-spark Igniter (lt. Or Rt.) |
|
- | |||||
| 3 | 334510 | Right |
|
- | |||||
| 3 | 334511 | Left |
|
- | |||||
| 4 | 333223 | Rear Burner-lt. Or Rt.. (inc`s. Key 8) |
|
- | |||||
| 5 | 333222 | Front Burner-lt. Or Rt. (inc`s. Key 8) |
|
- | |||||
| 6 | 337857 | Screw |
|
- | |||||
| 7 | 333607 | Support-top Burner |
|
- | |||||
| 8 | 327198 | Air Shutter |
|
- | |||||
| 9 | 324528 | Pressure Regulator |
|
- | |||||
| 10 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 11 | 311455 | Screw (for Key 19) |
|
- | |||||
| 12 | 231899 | Tubing 3/8`` |
|
- | |||||
| 13 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 14 | 326830 | Shut Off Valve |
|
- | |||||
| 15 | 313563 | Gasket (for Key 14 & 19) |
|
- | |||||
| 16 | 333221 | Manifold Pipe |
|
- | |||||
| 17 | 311692 | Gasket (for Key 11) |
|
- | |||||
| 18 | 328279 | Thermostat |
|
- | |||||
| 19 | 332001 | Gas Valve (inc`s Key 15) |
|
- | |||||
| 20 | 312457 | Switch-gas Valve |
|
- | |||||
| 21 | 329839 | Shield-thermostat |
|
- | |||||
| 22 | 78565 | Screw 8-32x3/16`` |
|
- | |||||
| 23 | 238833 | Screw 8-32 X 3/8`` |
|
- | |||||
| 24 | 335798 | Clip |
|
- | |||||
| 25 | 239764 | Nut 8-32 |
|
- |
