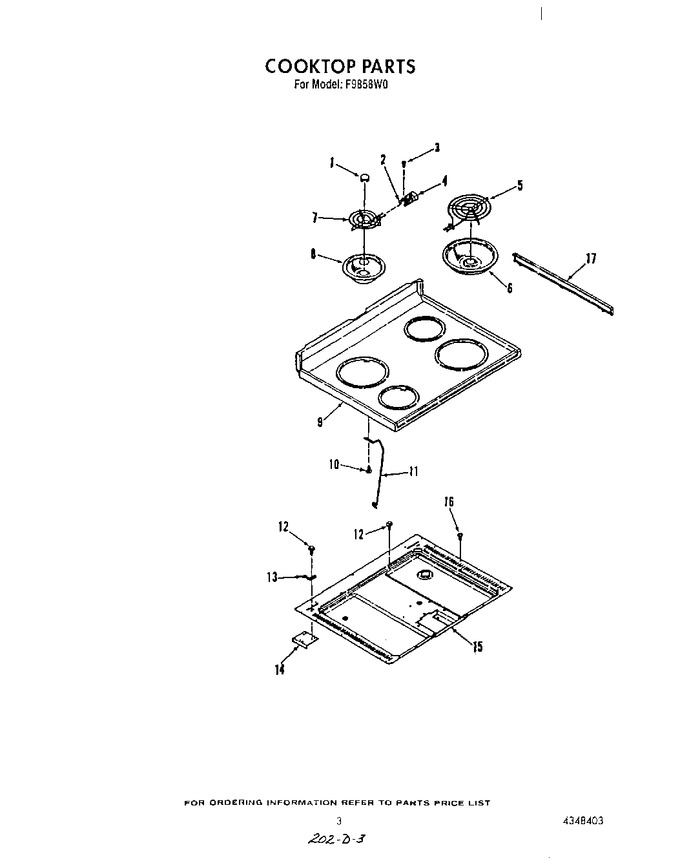

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4332691 | Medallion (4) |
|
- | |||||
| 2 | WP4332752 | Clip, Terminal Block (4) (Replaces: 4332752) |
|
$ 7.18 | |||||
| 3 | 4327985 | Screw, No.7-32 X 5/16 |
|
- | |||||
| 4 | 330031 | Terminal Block (Replaces: 4342636) |
|
Immediately | $ 17.93 | ||||
| 5 | WP3177565 | 8`` Surface Unit (Replaces: 4334589) |
|
$ 164.32 | |||||
| 6 | W10196405RW | 8`` Bowl (Replaces: 4329225) |
|
Immediately | $ 19.64 | ||||
| 7 | WPY04100165 | 6`` Surface Unit (Replaces: 4334592) |
|
Immediately | $ 56.92 | ||||
| 8 | WPW10196406 | 6`` Bowl (Replaces: 4327709) |
|
Immediately | $ 12.05 | ||||
| 9 | 4336718 | Main Cooktop (chrome) |
|
- | |||||
| 9 | 4336717 | Main Cooktop (white) |
|
- | |||||
| 9 | 4336759 | Main Cooktop (almond) |
|
- | |||||
| 10 | 4338182 | Screw |
|
- | |||||
| 11 | 4336765 | Support Rod (2) |
|
- | |||||
| 12 | WP681414 | Screw, No.10-16 X 7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 13 | 4337119 | Hinge, Cooktop (right) |
|
- | |||||
| 13 | 4337071 | Hinge, Cooktop (left) |
|
- | |||||
| 14 | 4337590 | Support Plate |
|
- | |||||
| 15 | 4336909 | Burner Box Bottom |
|
- | |||||
| 16 | 4337623 | Screw |
|
- | |||||
| 17 | 4337207 | Trim, Cooktop (right) |
|
- | |||||
| 17 | 4337208 | Trim, Cooktop (left) |
|
- |
