SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Cook Top

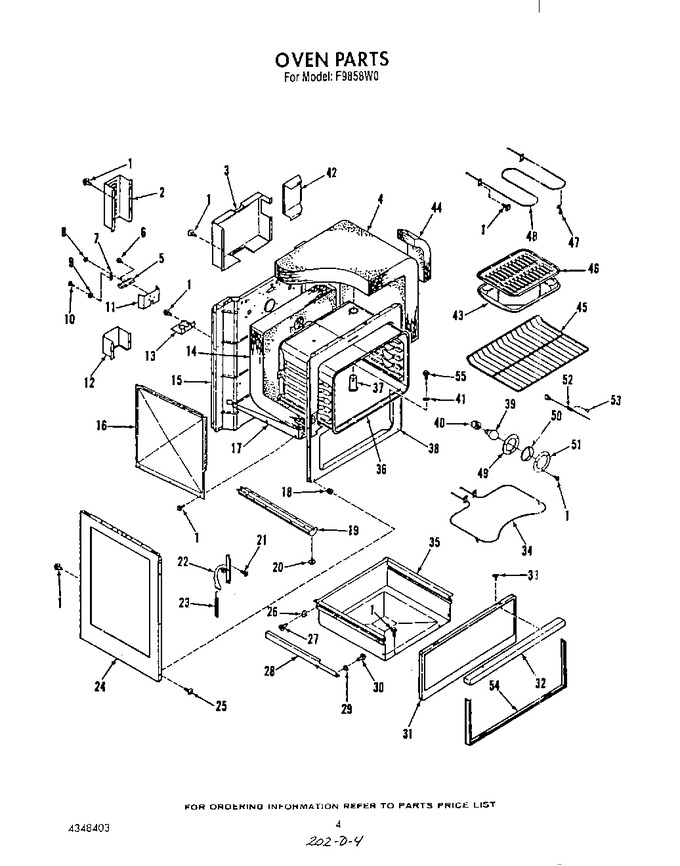

04 - Oven


05 - Door Lock


06 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
2	4335208		Wire Shield, Upper		Appelez-nous	-
3	4337567		Wire Shield		Appelez-nous	-
4	4338454		Insulation		Appelez-nous	-
5	WP8203546		Block, Junction   (Replaces: 4326821)			Immediately	$ 27.12
6	4331572		Screw, No.10-32x1		Appelez-nous	-
7	4335219		Strap, Ground		Appelez-nous	-
8	4354975		Nut, Hex 10-32		Appelez-nous	-
9	4327921		Washer		Appelez-nous	-
10	4331573		Screw No.10-32x7/16		Appelez-nous	-
11	4335209		Insulator, Service Cord		Appelez-nous	-
12	4335222		Wire Cover, Lower		Appelez-nous	-
13	4335223		Mounting Plate		Appelez-nous	-
14	4353609		Insulation, Back		Appelez-nous	-
15	4337044		Back-main		Appelez-nous	-
16	4353951		Retainer, Side Insulation (lt/rt)		Appelez-nous	-
17	4353950		Retainer, Lower		Appelez-nous	-
18	4331381		Spacer, Expansion Nut Sides (lt/rt)		Appelez-nous	-
19	4337332		Base W/levelers Rt/lt		Appelez-nous	-
20	4334800		Levelers, Leg (4)		Appelez-nous	-
21	4336631		Screw		Appelez-nous	-
22	4354928		Hinge, Oven Door (right)		Appelez-nous	-
22	4354929		Hinge, Oven Door (left)		Appelez-nous	-
23	4337253		Spring, Oven Door (lt/rt)		Appelez-nous	-
24	4342569		Side Panel (lt/rt) (white)		Appelez-nous	-
24	4342570		Side Panel (lt/rt) (almond)		Appelez-nous	-
24	4342571		Side Panel (lt/rt) (black)		Appelez-nous	-
25	4331822		Screw No.8x5/8		Appelez-nous	-
26	4325731		Rear Slide Block (lt/rt)		Appelez-nous	-
27	4323796		Screw, No.8-32 X 3/8		Appelez-nous	-
28	4331092		Support, Storage Drawer - Lt/rt		Appelez-nous	-
29	4325732		Front Slide Block, Lt/rt		Appelez-nous	-
30	4327611		Screw, No.10-32 X 17/32		Appelez-nous	-
31	4336747		Panel, Storage (white)		Appelez-nous	-
31	4336748		Panel, Storage (almond)		Appelez-nous	-
31	4336749		Panel, Storage (black)		Appelez-nous	-
32	4336754		Handle		Appelez-nous	-
33	4337797		Screw		Appelez-nous	-
34	4334929		Element, Bake (208 Volt)		Appelez-nous	-
34	4334928		Element, Bake (240 Volt)				$ 80.01
35	4327658		Drawer, Storage		Appelez-nous	-
36	4337959		Oven		Appelez-nous	-
37	4337059		Tube, Vent		Appelez-nous	-
38	4336956		Frame, Front		Appelez-nous	-
39	8009		Lamp   (Replaces: 4324154)			Immediately	$ 16.80
40	W10856866		Holder, Bulb   (Replaces: 4323560)				$ 6.80
41	4323979		Washer		Appelez-nous	-
42	4336373		Wire Shield		Appelez-nous	-
43	4396923		Pan, Broiler   (Replaces: 4336602)			Immediately	$ 54.64
44	4354262		Insulation		Appelez-nous	-
45	4338333		Oven Rack (folding)		Appelez-nous	-
45	4334809		Oven Rack (straight Rack)				$ 54.59
46	4396923		Broiler, Grid Pan   (Replaces: 4334897)			Immediately	$ 54.64
47	4337249		Support, Broiler Element		Appelez-nous	-
48	WP4334925		Element, Broil (240 Volt)   (Replaces: 4337191)				$ 139.19
48	WP4334925		Element, Broil (208 Volt)   (Replaces: 4337192)				$ 139.19
49	4324481		Seal, Lens		Appelez-nous	-
50	4324415		Lens, Oven Bulb		Appelez-nous	-
51	4324482		Retainer, Oven Lamp		Appelez-nous	-
52	4337170		Sensor		Appelez-nous	-
53	4338182		Screw		Appelez-nous	-
54	4336753		Frame, Front Panel		Appelez-nous	-
55	WP308685		Screw   (Replaces: 4335117)			Immediately	$ 7.08

    View Diagram in Separate Window       Print Part List
