SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Cook Top


04 - Oven


05 - Door Lock


06 - Oven Door

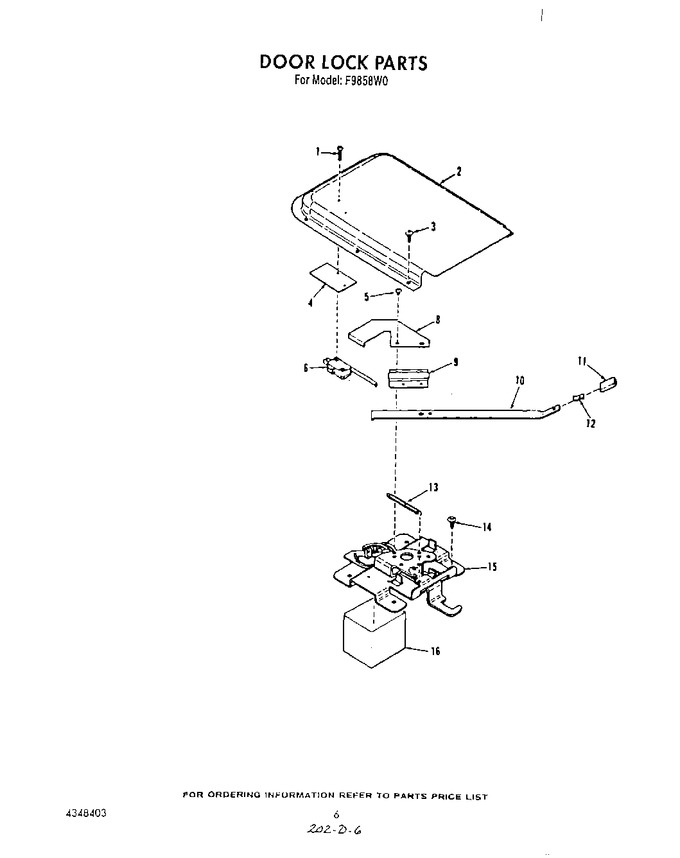

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4337616		Screw, No.4-40 X 11/16		Appelez-nous	-
2	4337612		Cover, Lock		Appelez-nous	-
3	4337797		Screw		Appelez-nous	-
4	4335973		Insulator, Switch		Appelez-nous	-
5	4323636		Screw, No.8-32 X 1/8		Appelez-nous	-
6	4337452		Micro Switch		Appelez-nous	-
8	4337611		Lever, Switch		Appelez-nous	-
9	4337056		Retainer, Handle		Appelez-nous	-
10	4337057		Handle, Latch		Appelez-nous	-
11	4337568		Knob, Lock		Appelez-nous	-
12	4335705		Clip, Knob		Appelez-nous	-
13	4331536		Spring		Appelez-nous	-
14	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
15	4337053		Latch Assembly		Appelez-nous	-
16	WP285432		14``   (Replaces: 4325037)				$ 7.34
16	4337374		Clock/oven Control		Appelez-nous	-
16	4325031		Eyelet Terminal		Appelez-nous	-
16	4325035		Flag Terminal Faston Terminal		Appelez-nous	-
16	4325036		3/16``		Appelez-nous	-
16	4342826		Retainer, Insulation		Appelez-nous	-
16	330031		Main Top   (Replaces: 4338440)			Immediately	$ 17.93

    View Diagram in Separate Window       Print Part List
