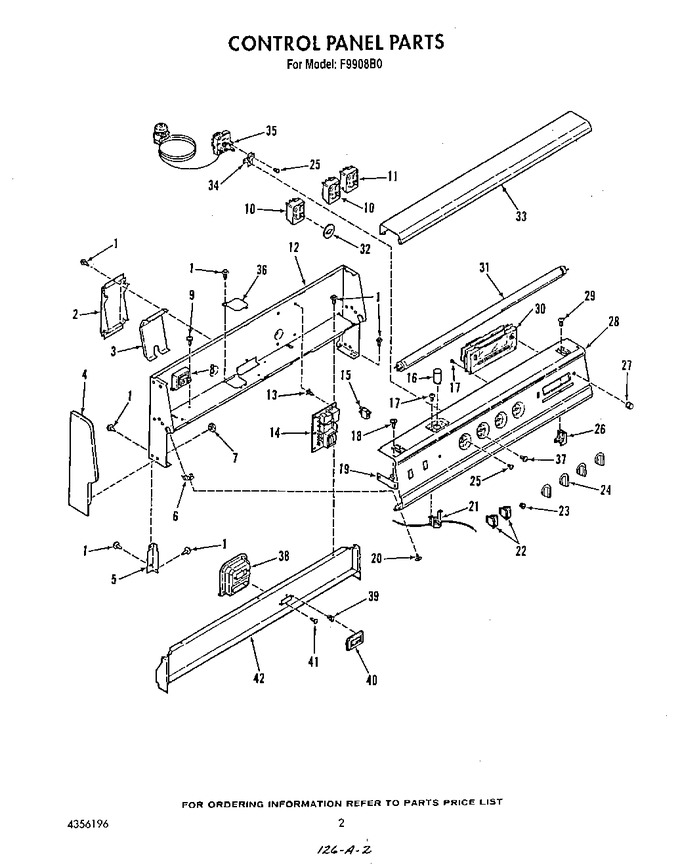

02 - Control Panel
03 - Oven
04 - Cooktop
05 - Door Lock
06 - Oven Door , Wire Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, No.10-16 X 7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 2 | 4337189 | Raceway |
|
- | |||||
| 3 | 4337190 | Cover, Raceway |
|
- | |||||
| 4 | 4337048 | End Cap (left) |
|
- | |||||
| 4 | 4337047 | End Cap (right) |
|
- | |||||
| 5 | 4337180 | Support, Backguard (right) |
|
- | |||||
| 5 | 4337181 | Support, Backguard (left) |
|
- | |||||
| 6 | 4338226 | Clip, Backguard |
|
- | |||||
| 7 | WP308499 | Nut, Pal (Replaces: 4337577) |
|
$ 6.57 | |||||
| 8 | 4323673 | Ballast |
|
- | |||||
| 9 | 4336048 | Screw, No.6-20 X 3/8 |
|
- | |||||
| 10 | W10900107 | Infinite Switch, Rt Front (Replaces: 4337675) |
|
Immediately | $ 51.87 | ||||
| 11 | W10900107 | Infinite Switch, Lt Front/rt Rear (Replaces: 4337674) |
|
Immediately | $ 51.87 | ||||
| 12 | 4338273 | Backguard |
|
- | |||||
| 13 | 4337387 | Spacer, Pc Board |
|
- | |||||
| 14 | 4338369 | Relay Circuit Board |
|
- | |||||
| 15 | 4336633 | Indicator Light |
|
- | |||||
| 16 | 4337125 | Starter, Lamp |
|
- | |||||
| 17 | 4323476 | Screw, No.6-32 X 5/16 |
|
- | |||||
| 18 | WP308685 | Screw (Replaces: 4335117) |
|
Immediately | $ 7.08 | ||||
| 19 | 4337555 | Bracket, Backguard |
|
- | |||||
| 20 | 4332521 | Screw No.10-32x1/2 |
|
- | |||||
| 21 | 4337372 | Starter Base |
|
- | |||||
| 22 | WP4314961 | Switch (Replaces: 4337275) |
|
$ 84.56 | |||||
| 23 | WP9750343 | Lens, Indicator Light (Replaces: 4336632) |
|
Immediately | $ 5.40 | ||||
| 24 | 4337246 | Knob, Infinite |
|
- | |||||
| 25 | 4323476 | Screw No.8-32x3/16 |
|
- | |||||
| 26 | 4337139 | Holder, Lamp |
|
- | |||||
| 27 | 4337391 | Control Knob, Clock/oven |
|
- | |||||
| 28 | 4338516 | Control Panel |
|
- | |||||
| 29 | WP486754 | Screw, No.6-32 X 3/8 (Replaces: 4323581) |
|
$ 7.21 | |||||
| 30 | 4338643CP | Clock/oven Control W/lens (Replaces: 4338368) |
|
- | |||||
| 31 | WP95292 | Lamp, Fluorescent (Replaces: 4337142) |
|
Immediately | $ 121.45 | ||||
| 32 | 4338452 | Spacer, Infinite Control |
|
- | |||||
| 33 | 4337141 | Panel, Cover |
|
- | |||||
| 34 | 4338459 | Bracket, Thermostat |
|
- | |||||
| 35 | 4337327 | Thermostat, Hob Element |
|
- | |||||
| 36 | 4337516 | Cover Plate |
|
- | |||||
| 37 | 4338532 | Screw |
|
- | |||||
| 38 | 4338341 | Vent Box Assembly |
|
- | |||||
| 39 | 4338470 | Clip |
|
- | |||||
| 40 | 4338334 | Cover, Vent |
|
- | |||||
| 41 | 4338182 | Screw |
|
- | |||||
| 42 | 4342958 | Panel, Front |
|
- | |||||
| 4338590 | Xlens, Clock/oven Control |
|
- |
