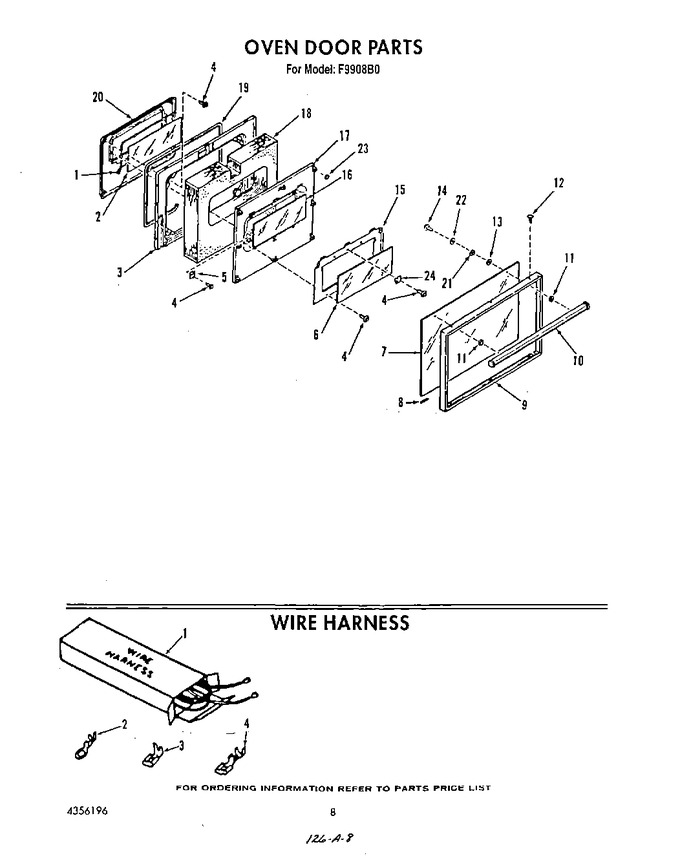

06 - Oven Door , Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4342634		Seal, Inner Glass		Appelez-nous	-
1	4338557		Wire Harness (lock Switch)		Appelez-nous	-
1	4338556		Wire Harness (clock/oven Control)		Appelez-nous	-
1	4338555		Wire Harness (backguard)		Appelez-nous	-
1	4338560		Wire Harness (main)		Appelez-nous	-
1	4338559		Wire Harness (sensor)		Appelez-nous	-
1	4338558		Wire Harness (main Top-left)		Appelez-nous	-
1	4338344		Wire Harness (main Top-right)		Appelez-nous	-
2	4325031		Eyelet Terminal		Appelez-nous	-
2	4337767		Glass-inner		Appelez-nous	-
3	4325033		Flag Terminal		Appelez-nous	-
3	4336608		Lining		Appelez-nous	-
4	4325036		Faston Terminal (3/16``)		Appelez-nous	-
4	WP285432		Faston Terminal, (1/4``)   (Replaces: 4325037)				$ 7.34
4	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
5	4331472		Retainer, Glass		Appelez-nous	-
6	4334821		Glass, Intermediate		Appelez-nous	-
7	4336721		Glass, Outer		Appelez-nous	-
8	4324217		Cushion (3)		Appelez-nous	-
9	4338148		Frame, Door		Appelez-nous	-
10	4336828		Handle		Appelez-nous	-
11	4323997		Spacer, Handle		Appelez-nous	-
12	4336631		Screw		Appelez-nous	-
13	4336868		Washer		Appelez-nous	-
14	WP999367		Screw, No.10-32 X 3/4   (Replaces: 4328242)				$ 7.70
15	4335753		Mounting Plate		Appelez-nous	-
16	4338251		Glass, Center		Appelez-nous	-
17	4335756		Retainer, Insulation		Appelez-nous	-
18	4354947		Insulation		Appelez-nous	-
19	4342564		Gasket, Door		Appelez-nous	-
20	4337448		Plug, Door Lining		Appelez-nous	-
21	4336869		Spacer, Glass		Appelez-nous	-
22	4323694		Washer		Appelez-nous	-
23	4337618		Washer, Felt		Appelez-nous	-
24	4334791		Retainer, Glass		Appelez-nous	-
