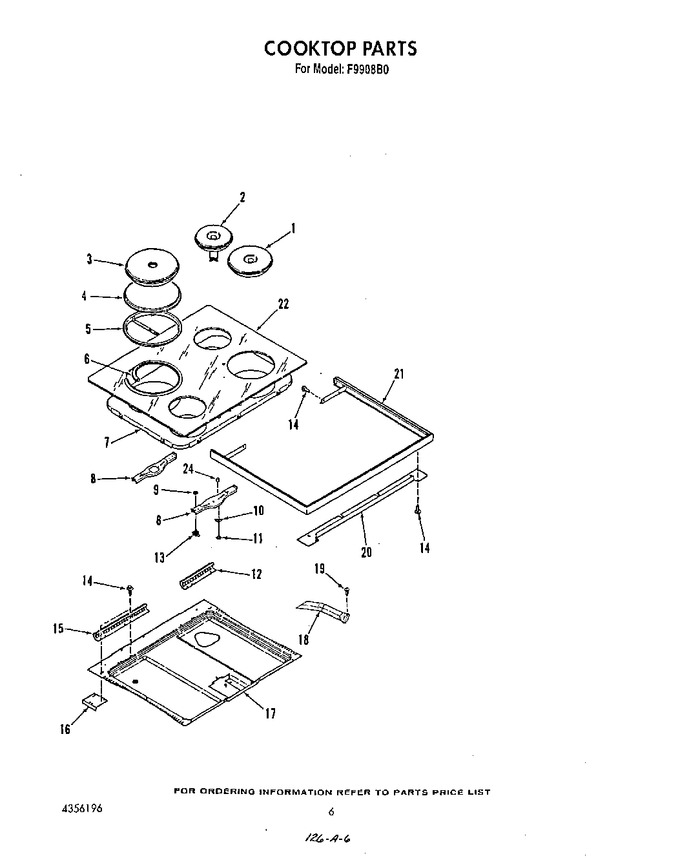

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3147132		Element, Large Rt Front   (Replaces: 4335940)				$ 286.33
2	WP3147131		Element, Small Lt Front-rt Rear   (Replaces: 4335939)				$ 257.00
3	4337293		Element, Thermal Lt Rear		Appelez-nous	-
4	4337637		Trim Ring (lt Rear)		Appelez-nous	-
4	4337635		Trim Ring (lt Front-rt Rear)		Appelez-nous	-
4	4337636		Trim Ring (rt Front)		Appelez-nous	-
5	4337640		Gasket Ring (lt Rear)		Appelez-nous	-
5	4337639		Gasket Ring (rt Front)		Appelez-nous	-
5	4337638		Gasket Ring (lt Front-rt Rear)		Appelez-nous	-
6	4337633		Seal, Element (lt Rear)		Appelez-nous	-
6	4354951		Seal, Element (rt Front)		Appelez-nous	-
6	4354950		Seal, Element (lt Front-rt Rear)		Appelez-nous	-
7	4338380		Burner Box		Appelez-nous	-
8	4342973		Strap, Element (lt Front-rt Rear-rt Front)		Appelez-nous	-
8	4338471		Strap, Element (lt Rear)		Appelez-nous	-
9	4337395		Nut		Appelez-nous	-
10	4337634		Washer, Spring		Appelez-nous	-
11	4336026		Nut		Appelez-nous	-
12	4338342		Support, Rt Glass		Appelez-nous	-
13	4337643		Switch, Thermal		Appelez-nous	-
14	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
15	4342974		Support, Lt Glass		Appelez-nous	-
16	4337590		Plate		Appelez-nous	-
17	4338469		Bottom, Burner Box		Appelez-nous	-
18	4338430		Extension, Vent Tube		Appelez-nous	-
19	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
20	4338563		Plate, Cover		Appelez-nous	-
21	4338336		Frame, Cooktop		Appelez-nous	-
22	4338374		Glass, Cooktop		Appelez-nous	-
24	4334199		Spacer		Appelez-nous	-
