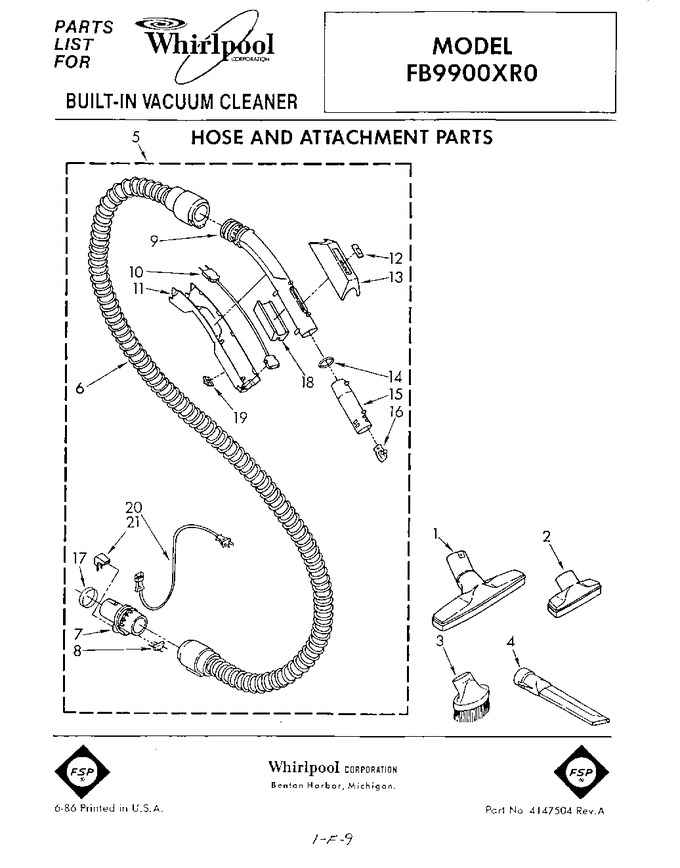

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	744141		Brush, Floor		Appelez-nous	-
2	744144		Nozzle, Upholstery		Appelez-nous	-
3	744146		Brush, Dusting		Appelez-nous	-
4	744140		Tool, Crevice		Appelez-nous	-
5	4147330		Hose Assembly		Appelez-nous	-
6	4147326		Hose		Appelez-nous	-
7	734065		Terminal		Appelez-nous	-
8	741428		Plug, Male		Appelez-nous	-
9	744180		Housing, Center Tube		Appelez-nous	-
10	4147325		Cord & Plug Assembly		Appelez-nous	-
11	4147697		Switch & Lower Housing		Appelez-nous	-
12	744187		Control, Suction		Appelez-nous	-
13	744185		Housing, Upper		Appelez-nous	-
14	745016		``o`` Ring		Appelez-nous	-
15	4147584		Tube (includes Illus. 16)		Appelez-nous	-
16	725419		Spring, Wandlock		Appelez-nous	-
17	4147616		Ring, Contact		Appelez-nous	-
18	4147329		Filler, Foam		Appelez-nous	-
19	744741		Topper, Switch		Appelez-nous	-
20	734070		Cord, Power		Appelez-nous	-
21	742359		Plug, Double Fused		Appelez-nous	-
