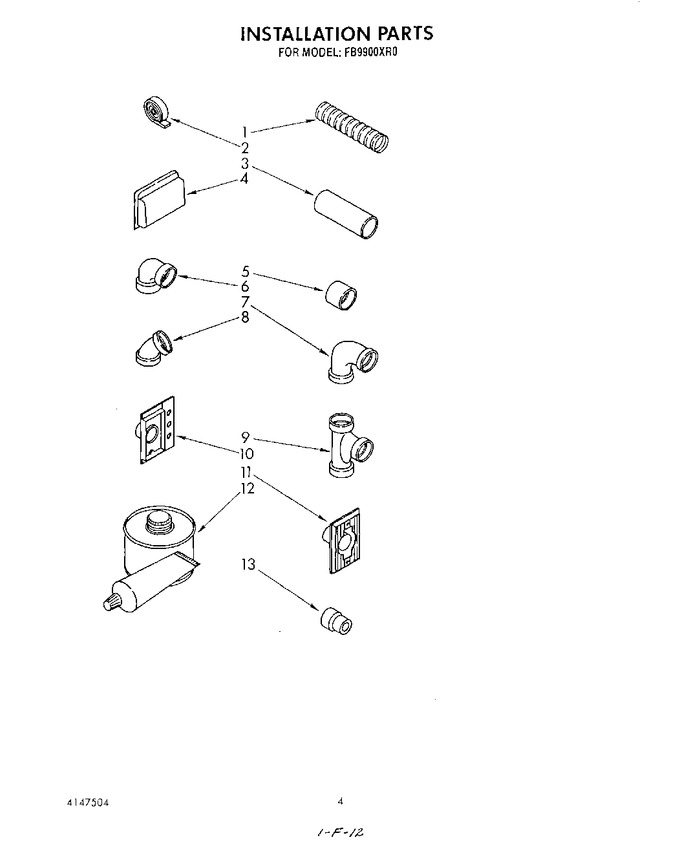

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	732256		Tubing, Flexible, 9``		Appelez-nous	-
2	732255		Tape, 400``		Appelez-nous	-
3	732301		Tube, Pvc 1-3/4 O.d. X 8``		Appelez-nous	-
4	DE81-04530A		Muffler, Exhaust   (Replaces: 701113)				$ 182.86
5	4147065		Coupling, 2``		Appelez-nous	-
6	4147069		Elbow, 90~ Short 2``		Appelez-nous	-
7	4147063		Elbow, 90~ Sweep, 2``		Appelez-nous	-
8	4147071		Elbow, 45~, 2``		Appelez-nous	-
9	4147067		Tee, 90~ Sweep		Appelez-nous	-
10	4147061		Mounting Plate		Appelez-nous	-
11	4147059		Wall Valve		Appelez-nous	-
12	616070		Adhesive (for Sealing Rigid Tube To Fittings) (1/2 Pint Can)		Appelez-nous	-
12	701695		Adhesive (for Sealing Rigid Tube To Fittings) (1 Oz. Tube)		Appelez-nous	-
13	616556		Coupling, Reducer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
