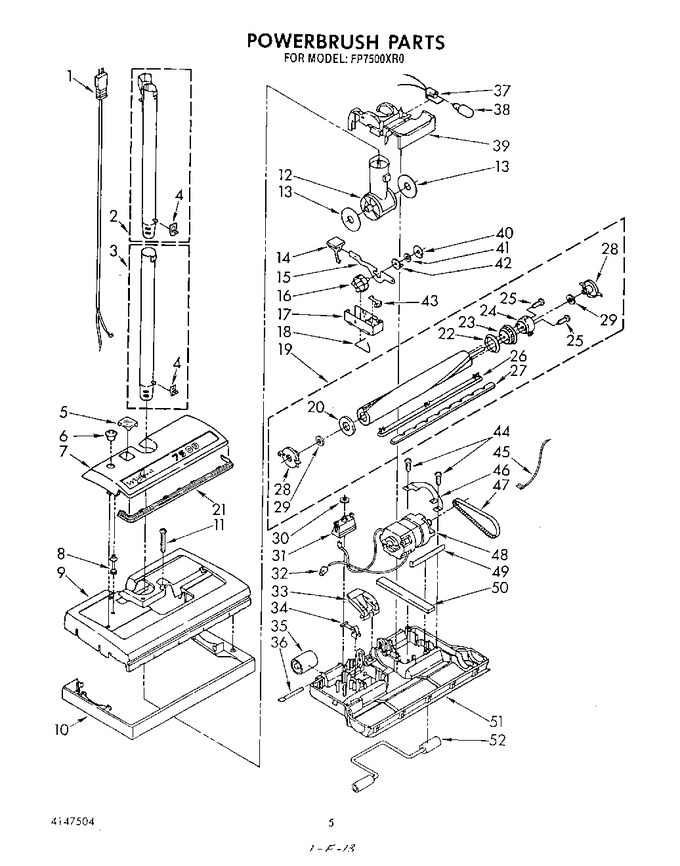

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	744265		Cord & Plug		Appelez-nous	-
2	745250		Wand & Cord Mount Assembly		Appelez-nous	-
3	742489		Wand, Lower		Appelez-nous	-
4	725419		Spring, Wandlock		Appelez-nous	-
5	744237		Lens, Height Adjustment		Appelez-nous	-
6	4147046		Bezel		Appelez-nous	-
7	4147039		Cover, Nozzle		Appelez-nous	-
8	744280		Button Extension		Appelez-nous	-
9	744047		Nozzle		Appelez-nous	-
10	744092		Bumper		Appelez-nous	-
11	681550		Screw, 8-18 X 1-7/8 (2)		Appelez-nous	-
12	744032		Swivel		Appelez-nous	-
13	742019		Seal, Swivel		Appelez-nous	-
14	744040		Pad, Footpedal		Appelez-nous	-
15	742017		Lever, Indicator		Appelez-nous	-
16	744039		Cam, Indicator		Appelez-nous	-
17	742015		Block, Indicator		Appelez-nous	-
18	725775		Spring, Assist		Appelez-nous	-
19	742454		Bearing & Brush Assembly		Appelez-nous	-
20	742172		Guard, String		Appelez-nous	-
21	744119		Lens, Front		Appelez-nous	-
22	742031		Flange, Brush Sprocket		Appelez-nous	-
23	742506		Sprocket, Brush		Appelez-nous	-
24	742509		End Brush		Appelez-nous	-
25	681605		Screw, No.6-20 X 1`` (2)		Appelez-nous	-
26	742030		Brush, Beater (2)		Appelez-nous	-
27	742029		Bar, Beater		Appelez-nous	-
28	743395		Bearing & Housing Assembly (4)		Appelez-nous	-
29	681424		Washer, Metal 12 X 1/2 (2)		Appelez-nous	-
30	742968		Seal, Overload		Appelez-nous	-
31	742332		Overload Protector		Appelez-nous	-
32	596564		Wire Connector		Appelez-nous	-
33	744031		Release, Handle		Appelez-nous	-
34	742013		Lifter		Appelez-nous	-
35	744240		Roller (2)		Appelez-nous	-
36	742006		Axle, Rear (2)		Appelez-nous	-
37	745004		Socket, Bulb		Appelez-nous	-
38	676308		Bulb, Light (pkg. Of 2)		Appelez-nous	-
39	744036		Swivel Cap		Appelez-nous	-
40	722909		Washer, Thrust		Appelez-nous	-
41	725635		Washer		Appelez-nous	-
42	722955		Catch, Indexing		Appelez-nous	-
43	742016		Catch, Ratchet		Appelez-nous	-
44	WP488787		Screw, 8-18 X 5/8 (2)   (Replaces: 681297)				$ 10.13
45	4147041		Lead, Wire		Appelez-nous	-
46	705093		Bridge, Motor		Appelez-nous	-
47	733002		Belt, Cogged (pkg. Of 1)		Appelez-nous	-
48	705292		Motor		Appelez-nous	-
49	742002		Spring, Motor Adjustment		Appelez-nous	-
50	705309		Gasket		Appelez-nous	-
51	744027		Base		Appelez-nous	-
52	744029		Front Axle Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
