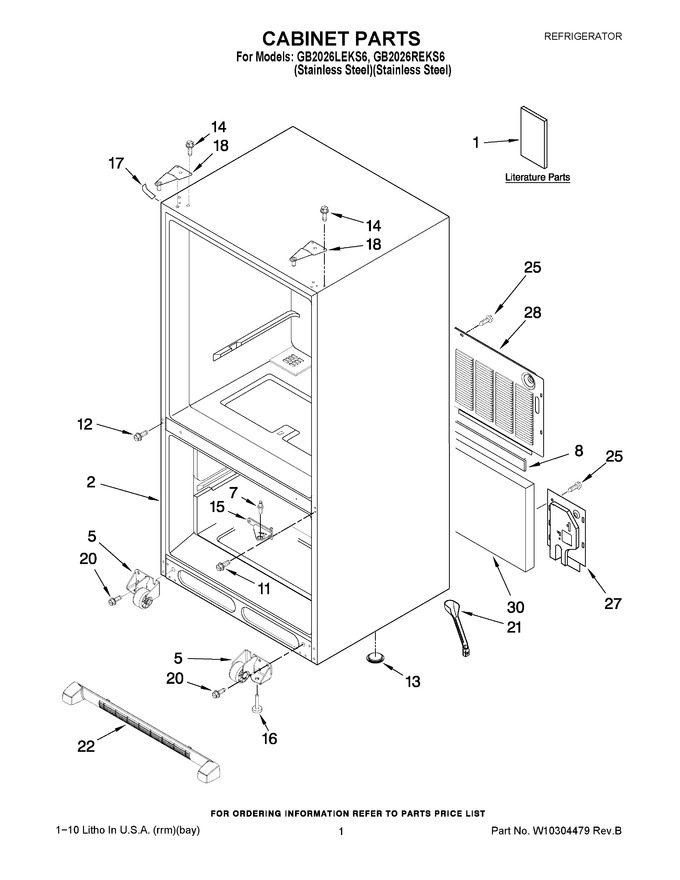

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10279340 | Tech Sheet |
|
- | |||||
| 1 | 12828189SP | Owners Manual |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 5 | W11820445 | Roller Foot Assembly (right) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820444 | Roller Foot Assembly (left) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 8 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 11 | W11573362 | Screw (3) (Replaces: 12992201) |
|
$ 14.72 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 16 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | WP12566606ED | Hinge, Top (left) (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 22 | WPW10534153 | Grille Assembly (includes Clips) (black) (Replaces: W10244561) |
|
$ 154.57 | |||||
| 25 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 28 | W10212203 | Cover, Unit |
|
- | |||||
| 30 | 12820505 | Insulation, Sound |
|
$ 71.70 |
