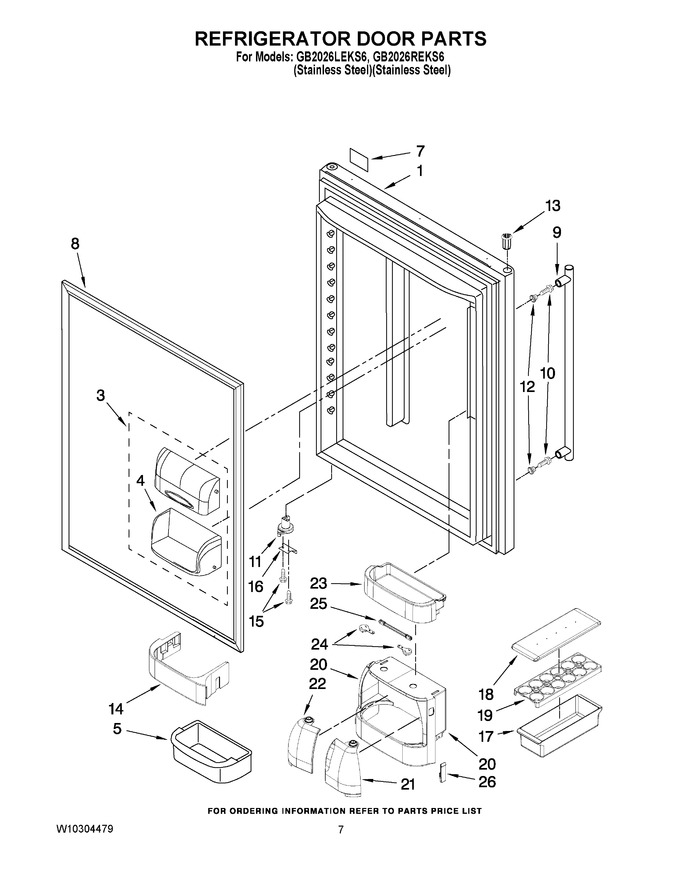

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13023894SQ		Refrigerator Door (w/ Insulation) (left, Stainless)		Appelez-nous	-
1	13023896SQ		Refrigerator Door (w/ Insulation) (right, Stainless)		Appelez-nous	-
3	WP12744905		Door, Compartment   (Replaces: 12744905)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	12849108		Bucket (2) (large)		Appelez-nous	-
7	61002504		Nameplate		Appelez-nous	-
8	W10164039		Gasket, Door Magnetic (black)				$ 343.59
9	12850919		Handle (stainless Steel)				$ 37.02
10	WPW10133608		Screw, Handle   (Replaces: 12991202)				$ 10.28
11	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
12	12945201		Mount, Handle				$ 35.20
13	67004978		Bushing (black)   (Replaces: 10961006B)				$ 22.10
14	12819901		Retainer, Chiller		Appelez-nous	-
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.75
17	10423131SP		Bin, Utility		Appelez-nous	-
18	10436404S		Lid-utility		Appelez-nous	-
19	10436506S		Tray, Egg		Appelez-nous	-
20	12805901SP		Frame, Chiller		Appelez-nous	-
21	12805301SP		Rh Door Chiller		Appelez-nous	-
22	12805402SP		Lh Door Chiller		Appelez-nous	-
23	12830301SP		Bucket, Chiller		Appelez-nous	-
24	12568401SP		Linkage, Chiller		Appelez-nous	-
25	12568502SP		Center, Linkage		Appelez-nous	-
26	12827501SP		Hook, Chiller		Appelez-nous	-
