SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts

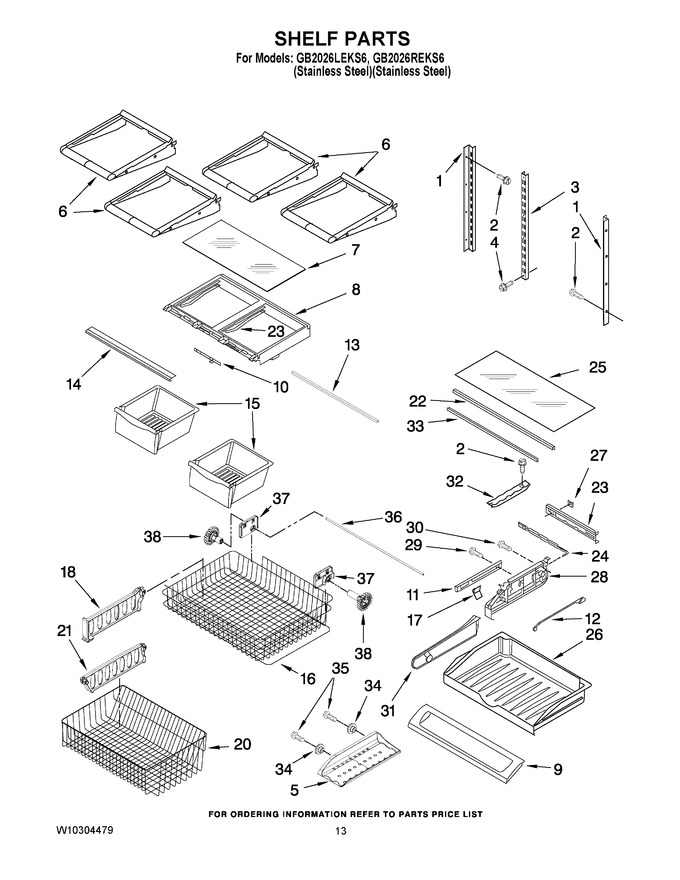

07 - Shelf Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251971		Ladder, Side				$ 59.47
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
3	W10273463		Ladder, Center				$ 29.61
4	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.79
5	12646501		Rack, Ice Tray		Appelez-nous	-
6	WP12463911		Shelf, Glide (4)   (Replaces: 12463911)				$ 309.28
7	WP67006655		Glass (2)   (Replaces: 12204821)			Immediately	$ 228.45
8	WP67006185		Frame, Crisper   (Replaces: 12531202SP)				$ 216.05
9	W10827015		Lid, Pantry   (Replaces: 12656814)			Immediately	$ 175.81
10	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
11	WPW10235370		Glide, Pantry (2)   (Replaces: 13058101V)			Immediately	$ 199.80
12	67003794		Bar, Control   (Replaces: 12655303)				$ 13.82
13	WP12227304WD		Brace, Crisper   (Replaces: 12227304WD)				$ 108.69
14	W10231346		Trim, Crisper				$ 51.20
15	WP67002659		Pan, Crisper (2)   (Replaces: 12531105SP)			Immediately	$ 147.67
16	W10348245		Basket, Freezer (upper)   (Replaces: W10188805)				$ 305.90
17	W11498983		Knob, Pantry   (Replaces: 12655204V)				$ 30.64
18	W10241046		Divider, Upper Basket			Immediately	$ 29.19
20	W10503185		Basket, Freezer (lower)   (Replaces: W10150040)				$ 156.98
21	W10150061		Divider, Lower Basket				$ 89.33
22	WP12227305WD		Brace, Pantry   (Replaces: 12227305WD)				$ 108.36
23	12656202		Control, Housing				$ 148.84
24	WP67003793		Slide, Control   (Replaces: 12655402)			Immediately	$ 78.49
25	W11125512		Glass, Pantry   (Replaces: 12204829)			Immediately	$ 253.06
26	W11490183		Drawer, Pantry   (Replaces: 12655702)				$ 144.29
27	67002329		Gasket, Pantry   (Replaces: 12656901)				$ 22.09
28	WP12656105		Endcap, Pantry (left)   (Replaces: 12656105)			Immediately	$ 58.41
28	WP12656018		Endcap, Pantry (right)   (Replaces: 12656018)			Immediately	$ 58.87
29	WP67006415		Screw (4)   (Replaces: 12990512)				$ 8.38
30	WP98165		Screw (4)   (Replaces: 12990504)				$ 8.57
31	WP67002321		Divider, Pantry   (Replaces: 12709301)				$ 33.79
32	WP67001719		Track, Drawer   (Replaces: 12531901)			Immediately	$ 8.99
33	W11812285		Trim, Glass   (Replaces: 12655902SP)				$ 53.33
34	10972101		Spacer, Ice Rack				$ 7.82
35	WP67006908		Screw   (Replaces: 12991001)			Immediately	$ 8.78
36	W11173556		Shaft, Rack   (Replaces: 12812904WD)				$ 32.38
37	W10348259		Mount, Gear (left)   (Replaces: W10233898)				$ 89.87
37	W10348260		Mount, Gear (right)   (Replaces: W10233899)				$ 89.90
38	WPW10474715		Gear (short-left)   (Replaces: W10146446)			Immediately	$ 32.76
38	WPW10474716		Gear (long-right)   (Replaces: W10158749)			Immediately	$ 32.42

    View Diagram in Separate Window       Print Part List
