SELECT A DIAGRAM

01 - Cabinet Parts

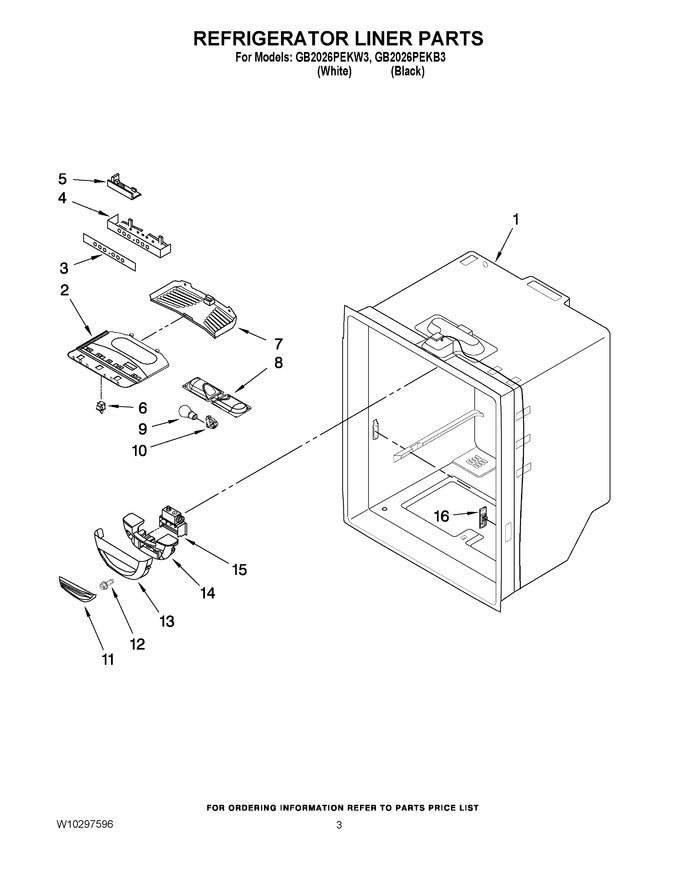

02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	12806301		Bracket, Control And Lights		Appelez-nous	-
3	12816517		Overlay		Appelez-nous	-
4	WPW10464769		Module, Electronic Control   (Replaces: 12806406)			Immediately	$ 113.76
5	WPW10708492		Board, Control   (Replaces: 12868515)				$ 265.67
6	W11384469		Switch, Light   (Replaces: C3680310V)			Immediately	$ 39.09
7	W11284721		Cover, Light   (Replaces: 12806501)				$ 106.02
8	W11447232		Housing, Light   (Replaces: W10134764)			Immediately	$ 13.87
9	WP67002552		Bulb, Light (2)   (Replaces: A0282808)			Immediately	$ 12.34
10	W11447232		Socket, Light (2)   (Replaces: 12570705)			Immediately	$ 13.87
11	67003900		Insert, Damper Cover   (Replaces: 12806801)			Immediately	$ 8.55
12	W11772394		Screw   (Replaces: 12990604)			Immediately	$ 13.22
13	WP12806701		Insulation   (Replaces: 12806701)				$ 118.65
14	W11750607		Control, Damper   (Replaces: 13012402)				$ 50.15
15	W10177399		Cover, Damper		Appelez-nous	-
16	12816203		Cover, Vent Chiller				$ 33.18
NI	12973503		Harness, Controls (refrigerator) (includes Thermistor)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
