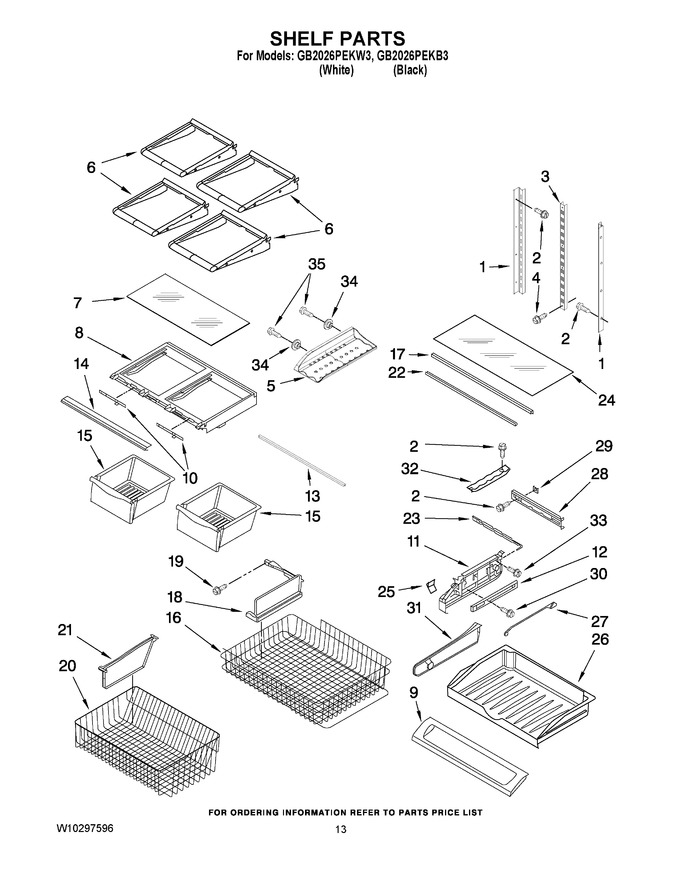

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251971 | Ladder, Side |
|
$ 59.47 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 4 | W10709795 | Screw (2) (Replaces: 12990515) |
|
$ 13.79 | |||||
| 5 | 12646501 | Rack, Ice Tray |
|
- | |||||
| 6 | WP12463911 | Shelf, Glide (4) (Replaces: 12463911) |
|
$ 309.28 | |||||
| 7 | WP67006655 | Glass (Replaces: 12204821) |
|
Immediately | $ 228.45 | ||||
| 8 | WP67006185 | Frame, Crisper (Replaces: 12531202SP) |
|
$ 216.05 | |||||
| 9 | W10827015 | Lid, Pantry (Replaces: 12656814) |
|
Immediately | $ 175.81 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 11 | WP12656105 | Endcap, Pantry (left) (Replaces: 12656105) |
|
Immediately | $ 58.41 | ||||
| 11 | WP12656018 | Endcap, Pantry (right) (Replaces: 12656018) |
|
Immediately | $ 58.87 | ||||
| 12 | WPW10235370 | Glide, Pantry (Replaces: 13058101) |
|
Immediately | $ 199.80 | ||||
| 13 | WP12227304WD | Brace Frame (Replaces: 12227304WD) |
|
$ 108.69 | |||||
| 14 | W10231346 | Trim, Crisper |
|
$ 51.20 | |||||
| 15 | 12724123 | Pan, Crisper (2) |
|
- | |||||
| 16 | 12896404 | Basket, Freezer (upper) |
|
- | |||||
| 17 | W11812285 | Extrusion, Support (Replaces: 12655902SP) |
|
$ 53.33 | |||||
| 18 | 12693802 | Divider, Upper Basket |
|
- | |||||
| 19 | 12990601 | Screw |
|
- | |||||
| 20 | 13016004 | Basket, Freezer (lower) |
|
- | |||||
| 21 | 12659606 | Divider, Lower Basket |
|
- | |||||
| 22 | WP12227305WD | Brace, Pantry (Replaces: 12227305WD) |
|
$ 108.36 | |||||
| 23 | WP67003793 | Slide, Pantry (Replaces: 12655402) |
|
Immediately | $ 78.49 | ||||
| 24 | W11125512 | Glass, Pantry (Replaces: 12204829) |
|
Immediately | $ 253.06 | ||||
| 25 | W11498983 | Knob, Contrl (Replaces: 12655204V) |
|
$ 30.64 | |||||
| 26 | W11490183 | Drawer, Pantry (Replaces: 12655702) |
|
$ 144.29 | |||||
| 27 | 67003794 | Bar, Control (Replaces: 12655303) |
|
$ 13.82 | |||||
| 28 | 12656202 | Housing, Control |
|
$ 148.84 | |||||
| 29 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 22.09 | |||||
| 30 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 31 | WP67002321 | Divider, Pantry (Replaces: 12709301) |
|
$ 33.79 | |||||
| 32 | WP67001719 | Track-pantry (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 33 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 34 | 10972101 | Spacer, Ice Rack |
|
$ 7.82 | |||||
| 35 | WP67006908 | Screw (Replaces: 12991001) |
|
Immediately | $ 8.78 |
