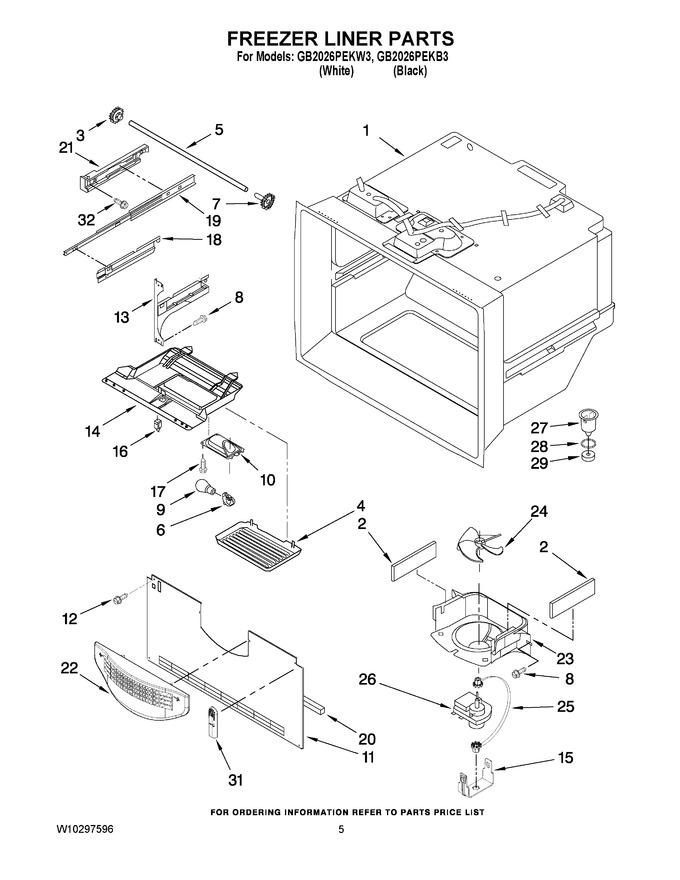

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Asevice Able Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 8.06 | ||||
| 3 | 12002497 | Gear (includes Rh & Lh) |
|
Immediately | $ 22.51 | ||||
| 4 | 12804901 | Cover, Light |
|
- | |||||
| 5 | W11028221 | Shaft (Replaces: 12812903WD) |
|
$ 33.24 | |||||
| 6 | W11447232 | Socket, Light (Replaces: W10134764) |
|
Immediately | $ 13.87 | ||||
| 7 | 12002497 | Gear (includes Lh & Rh) |
|
Immediately | $ 22.51 | ||||
| 8 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| 9 | WP67002552 | Bulb, Light (Replaces: A0282808) |
|
Immediately | $ 12.34 | ||||
| 10 | W11702858 | Housing, Frz. Light (Replaces: 12476401V) |
|
$ 90.11 | |||||
| 11 | W10308418 | Cover, Evaporator (Replaces: 12226114) |
|
- | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10330995 | Bracket, Door (right) (Replaces: W10119295) |
|
Immediately | $ 340.61 | ||||
| 13 | WPW10330994 | Bracket, Door (left) (Replaces: W10119064) |
|
Immediately | $ 169.02 | ||||
| 14 | 12805001 | Housing, Lighting |
|
- | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 17 | WP90767 | Screw (Replaces: 12991603V) |
|
Immediately | $ 8.25 | ||||
| 18 | WPW10281115 | Cradle, Basket (left) (Replaces: W10281115) |
|
$ 82.55 | |||||
| 18 | WPW10281116 | Cradle, Basket (right) (Replaces: W10281116) |
|
$ 83.35 | |||||
| 19 | W11658403 | Slide, Drawer (2) (Replaces: 13055901) |
|
Immediately | $ 225.25 | ||||
| 20 | W11451451 | Gasket, Bottom (Replaces: A3189397) |
|
$ 13.03 | |||||
| 21 | 12846606 | Bracket, Slide (right) |
|
- | |||||
| 21 | W10284690 | Bracket, Slide (left) (Replaces: 12846605) |
|
$ 78.55 | |||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Fan, Evaporator (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet |
|
$ 50.80 | |||||
| 26 | WP67005023 | Motor, Evaporator (Replaces: 10449516) |
|
$ 327.98 | |||||
| 27 | W10815413 | Funnel, Drain (incl. No. 28 & 29) (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.78 | |||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 8.21 | |||||
| 32 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| NI | 13065802 | Harness, Lights (freezer) |
|
- |
