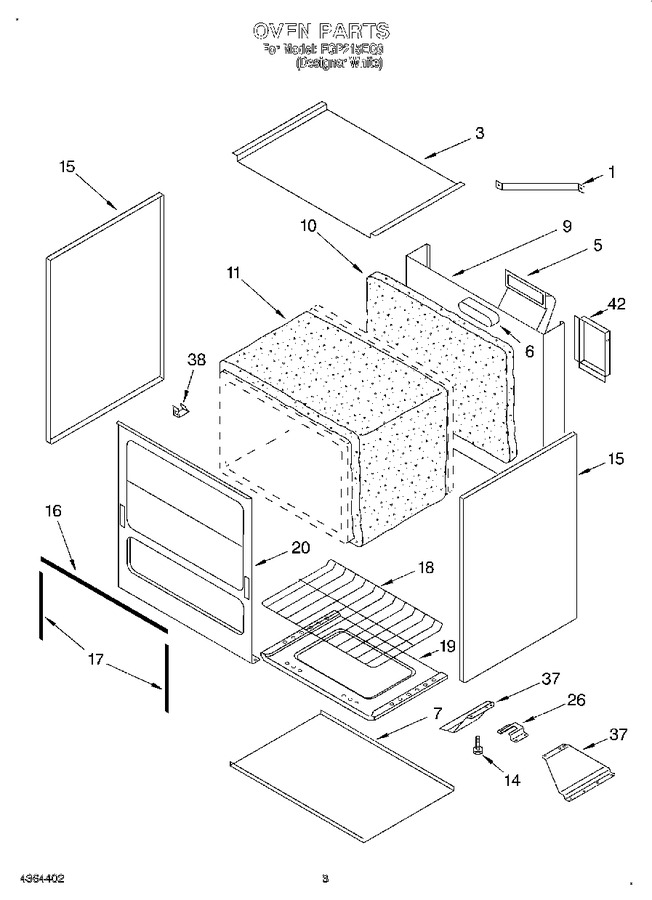

02 - Oven, Literature


03 - Oven Door And Broiler


04 - Backguard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364212		Brace, Back		Appelez-nous	-
3	4364267		Bottom, Burner Box		Appelez-nous	-
5	4364268		Flue Box		Appelez-nous	-
6	4364075		Ring, Flue Box		Appelez-nous	-
7	4364199		Bottom, Main		Appelez-nous	-
9	4364269		Main Back		Appelez-nous	-
10	4364204		Insulation, Back		Appelez-nous	-
11	4364205		Insulation, Wrap		Appelez-nous	-
14	W11673271		Leveler Leg (4)   (Replaces: 4364080)				$ 28.46
15	4364201		Panel, Side (white)		Appelez-nous	-
16	4364084		Gasket, Oven Top		Appelez-nous	-
17	4364208		Gasket, Oven Side		Appelez-nous	-
18	4364210		Rack, Oven		Appelez-nous	-
19	4364272		Bottom, Oven		Appelez-nous	-
20	4364209		Frame, Front		Appelez-nous	-
26	8190785		Anti-tip Bracket   (Replaces: 4364088)		Appelez-nous	-
37	4364215		Support, Side (right)		Appelez-nous	-
37	4364214		Support, Side (left)		Appelez-nous	-
38	4364130		Clip, Thermo Bulb		Appelez-nous	-
42	4364099		Power Cord		Appelez-nous	-
42	4364100		Strain Relief		Appelez-nous	-
42	4364279		Box, Power		Appelez-nous	-
42	4364095		Wire Bushing		Appelez-nous	-
42	4364280		Harness, Wire (black Jumper)		Appelez-nous	-
42	4364281		Harness, Wire (red Jumper)		Appelez-nous	-
42	4364282		Thermostat Wire		Appelez-nous	-
	LIT4364041		Use & Care Guide		Appelez-nous	-
	LIT4364407		Wiring Diagram		Appelez-nous	-
