View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop And Manifold
02 - Oven, Literature
03 - Oven Door And Broiler

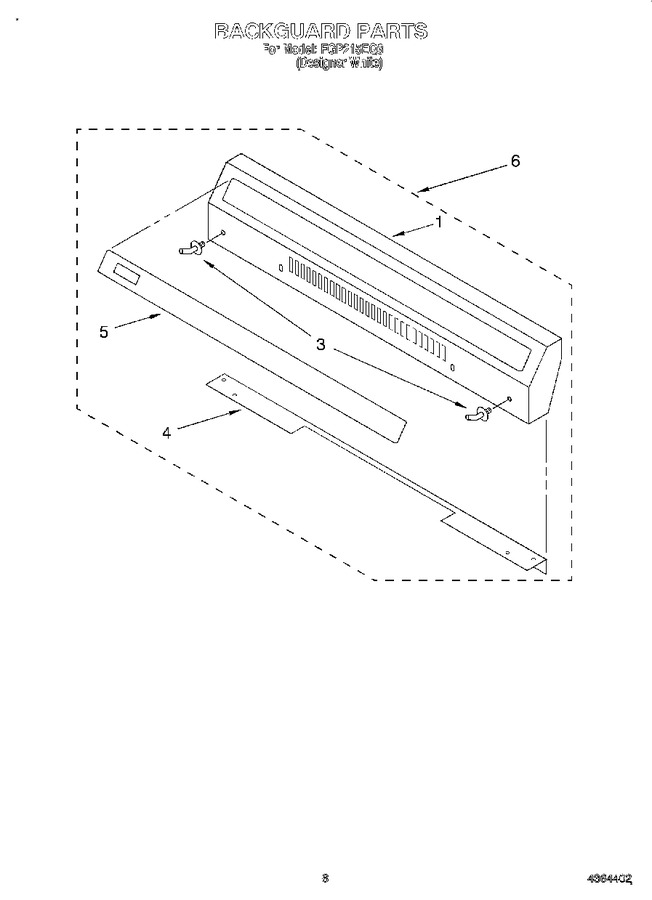

04 - Backguard
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4364286 | Backguard |
|
- | |||||
| 3 | 4364102 | Hinge Pin (2) |
|
- | |||||
| 4 | 4364245 | Support, Backguard |
|
- | |||||
| 5 | 4364389 | Overlay, Backguard |
|
- | |||||
| 6 | 4364412 | Backguard, Assy. |
|
- | |||||
| 6 | W11233072 | Screw, 8 X 1/2 (Replaces: 4364121) |
|
Immediately | $ 13.25 | ||||
| 6 | 4364046 | Wingnut, 10 X 24 |
|
- |
