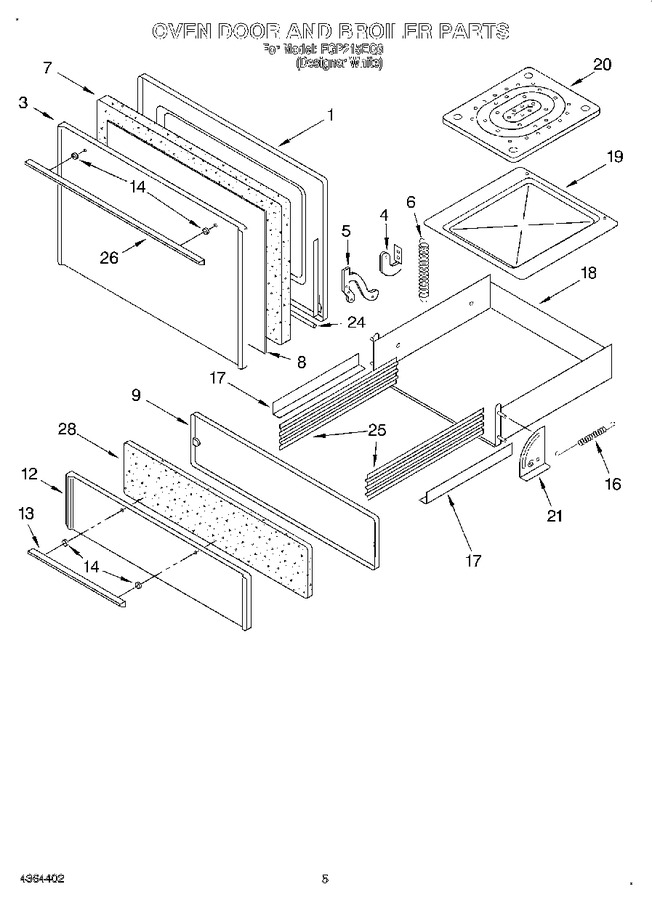

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364231		Liner, Door		Appelez-nous	-
3	4364380		Panel, Oven Door (white)		Appelez-nous	-
4	4364237		Bearing, Hinge (left)		Appelez-nous	-
4	4364238		Bearing, Hinge (right)		Appelez-nous	-
5	4364236		Hinge, Door (right)		Appelez-nous	-
5	4364235		Hinge, Door (left)		Appelez-nous	-
6	4364234		Spring, Door		Appelez-nous	-
7	4364284		Insulation, Door		Appelez-nous	-
8	4364285		Panel, Inner Door		Appelez-nous	-
9	4364276		Liner, Broiler Drawer		Appelez-nous	-
12	4364379		Panel, Broiler Door (white)		Appelez-nous	-
13	4364399		Handle, Drawer		Appelez-nous	-
14	4364057		Screw, 10-24 X 3/8		Appelez-nous	-
14	4364055		Spacer, Handle		Appelez-nous	-
16	4364060		Spring, Broiler		Appelez-nous	-
17	4364061		Broiler Drawer Runner (left)		Appelez-nous	-
17	4364062		Broiler Drawer Runner (right)		Appelez-nous	-
18	4364273		Liner, Broiler		Appelez-nous	-
19	4364216		Pan, Broiler		Appelez-nous	-
20	4364065		Grill, Broiler		Appelez-nous	-
21	4364068		Hinge, Broiler (screw, 10-24 X 3/8)		Appelez-nous	-
21	4364067		Hinge, Broiler (right)		Appelez-nous	-
21	4364066		Hinge, Broiler (left)		Appelez-nous	-
21	WP488130		Hinge, Broiler (hex Nut, 10-24)   (Replaces: 4364069)				$ 6.59
24	4364233		Rod, Oven Door		Appelez-nous	-
25	4364123		Glide, Broiler Pan		Appelez-nous	-
26	4364394		Handle, Oven Door		Appelez-nous	-
28	4364275		Insulation, Broiler Drawer		Appelez-nous	-
