01 - Cooktop
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Broiler
06 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

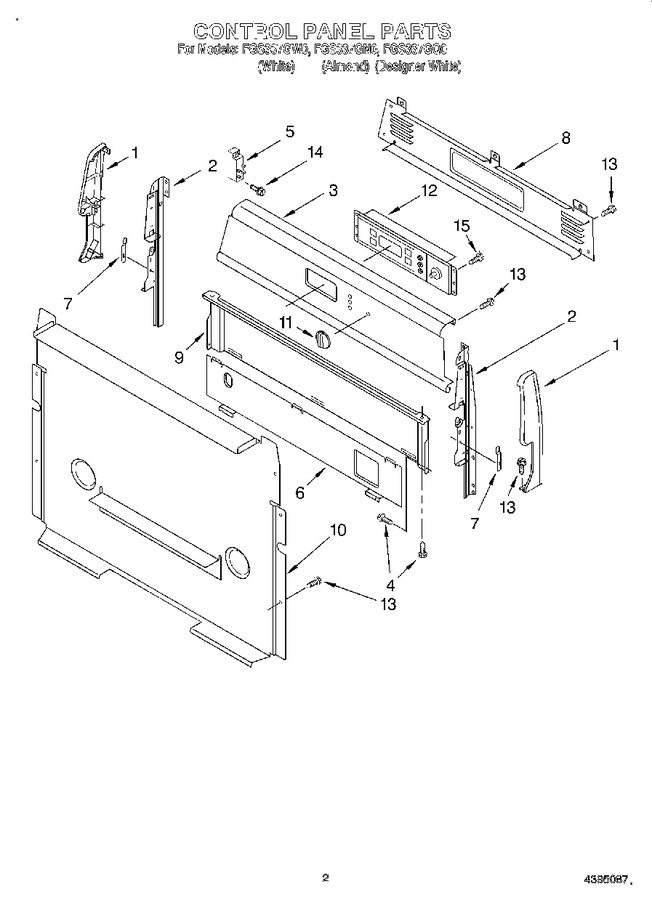

| 1 | 3195317 | Endcap (right Hand-black) |
|
- | |||||
| 1 | 3195318 | Endcap (left Hand-white) |
|
- | |||||
| 1 | 3195319 | Endcap (right Hand-white) |
|
- | |||||
| 1 | 3195316 | Endcap (left Hand-black) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||
| 3 | 8053254 | Panel, Backguard (white) |
|
- | |||||
| 3 | 8053253 | Panel, Backguard (black) |
|
- | |||||
| 4 | W10276642 | Screw (Replaces: 4449746) |
|
$ 6.10 | |||||
| 5 | WP8053421 | Module, Spark (Replaces: 8053421) |
|
Immediately | $ 184.47 | ||||
| 6 | 8053505 | Shield, Lower Heat |
|
$ 157.99 | |||||
| 7 | 3196200 | Clip, Spring (2) |
|
$ 9.95 | |||||
| 8 | 3195963 | Cover, Upper |
|
- | |||||
| 9 | 8053910 | Shield, Heat |
|
- | |||||
| 10 | 8053509 | Cover, Lower |
|
- | |||||
| 11 | 8053354 | Knob-150 Control (black) |
|
- | |||||
| 11 | 8053355 | Knob-150 Control (white) |
|
- | |||||
| 12 | 3196971 | Control, Range (white) |
|
- | |||||
| 12 | 3196970 | Control, Range (black) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 14 | WPY706189 | Screw (Replaces: 3196427) |
|
Immediately | $ 7.19 | ||||
| 15 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 |
