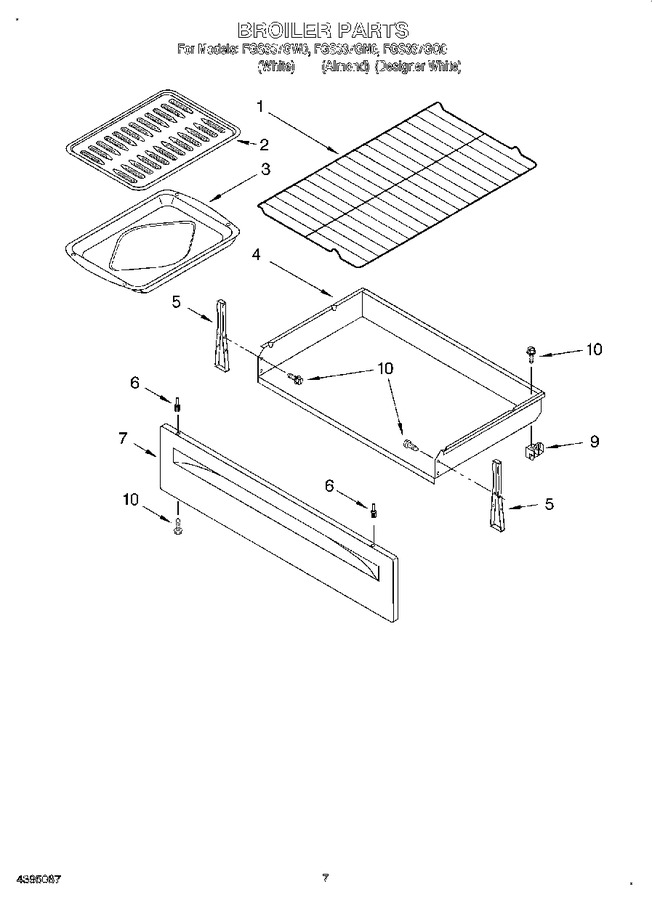

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 46.84 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 91.81 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 310.42 | |||||
| 4 | 8053343 | Drawer, Storage |
|
- | |||||
| 5 | W11759228 | Bracket, Drawer (2) (Replaces: 3196817) |
|
$ 26.17 | |||||
| 6 | WP3196814 | Rivet, Push (2) (white) (Replaces: 3196814) |
|
Immediately | $ 10.54 | ||||
| 6 | 3196815 | Rivet, Push (2) (almond) |
|
- | |||||
| 7 | W11230486 | Panel, Drawer Front (white) (Replaces: 8053336) |
|
$ 201.42 | |||||
| 7 | 8053337 | Panel, Drawer Front (almond) |
|
- | |||||
| 9 | WP8053334 | Glide, Drawer (2) (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.75 |
