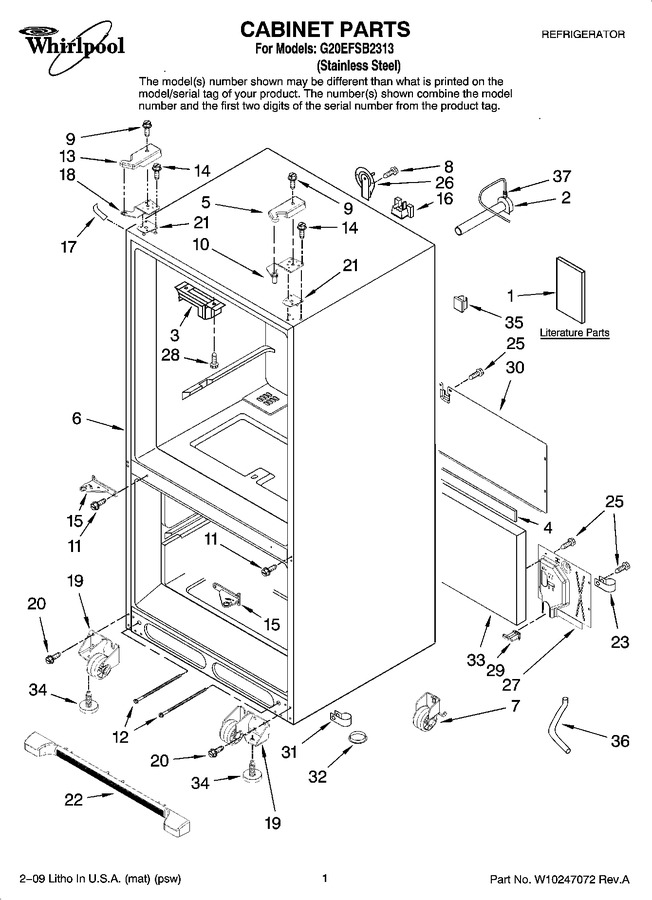

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006073		Guide, Energy		Appelez-nous	-
1	12827957		Tech Sheet		Appelez-nous	-
1	12828176SP		Owners Manual		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.82
4	B5759649		Gasket		Appelez-nous	-
5	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
7	67006118		Roller Assy.(rear)		Appelez-nous	-
8	WP98165		Screw   (Replaces: 67006287)				$ 8.00
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	WP12566607ED		Hinge, Top Right   (Replaces: 12566605ED)				$ 86.75
11	W11573362		Screw (6)   (Replaces: 67006380)				$ 14.02
12	67006697		Bolt, Adjusting (rear)				$ 12.88
13	12684201B		Cover, Left Hinge (black)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 67006303)			Immediately	$ 7.88
15	W10918164		Hinge, Center (left)   (Replaces: 13000001ED)				$ 86.64
15	W10918164		Hinge, Center (right)   (Replaces: 13000002ED)				$ 86.64
16	12777701		Block, Fill Tube				$ 7.17
17	67003485		Cover, Corner (2) (black)			Immediately	$ 21.09
18	WP12566606ED		Hinge, Top Left   (Replaces: 12566604ED)			Immediately	$ 44.89
19	W11820444		Roller Assy. (front) (left)   (Replaces: W10130460)			Immediately	$ 35.57
19	W11820445		Roller Assy. (front) (right)   (Replaces: W10130459)			Immediately	$ 35.57
20	67006564		Screw (8)			Immediately	$ 7.69
21	12579702		Shim, Hinge		Appelez-nous	-
22	W10131134		Grille, Toe (black)				$ 53.25
23	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
25	67006425		Screw (10)			Immediately	$ 6.95
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
27	67004735		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 67006669)			Immediately	$ 7.61
29	12831101		Sweep, Dual Tube   (Replaces: 67004101)				$ 12.41
30	67002230		Cover, Unit		Appelez-nous	-
31	67001067		Clip, Drain Tube				$ 9.20
32	A3076901		Plug, Button				$ 5.70
33	67003796		Insulation, Sound				$ 19.27
34	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 7.85
35	WPM0104106		Clip (2)   (Replaces: M0104106)				$ 7.78
36	67001066		Tube, Drain				$ 55.82
37	WPM0114003		Clip   (Replaces: M0114003)				$ 11.05
