01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)

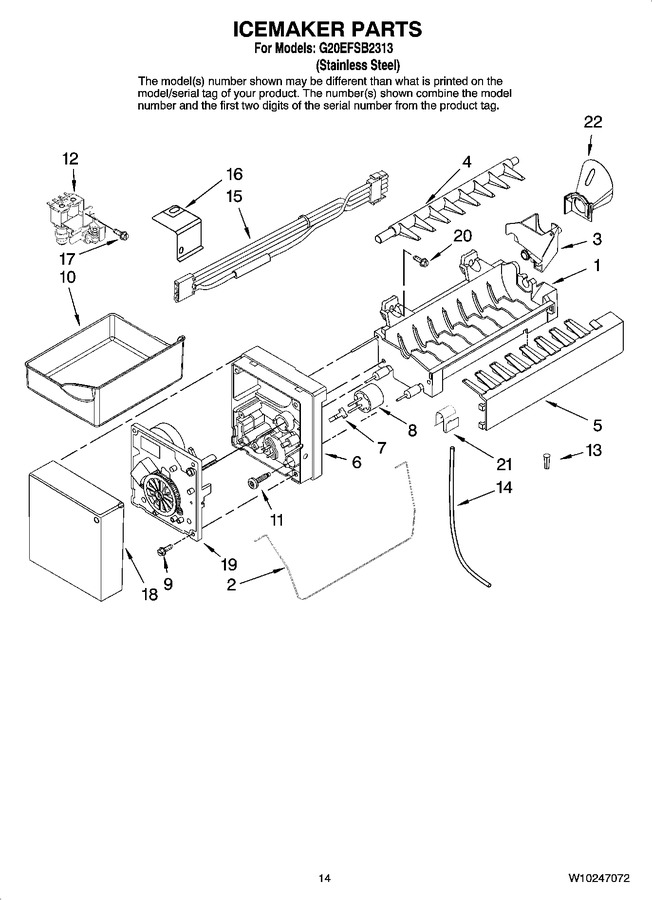

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10122523		Mold & Heater Assembly (also Order 542638 Grease)		Appelez-nous	-
2	WP67004028		Arm, Shutoff   (Replaces: 67004028)			Immediately	$ 86.33
3	W10122561		Cup, Fill   (Replaces: 628515)				$ 26.24
4	WP627843		Ejector   (Replaces: 627843)				$ 79.00
5	WP2182124		Ice Stripper   (Replaces: 2182124)				$ 81.32
6	WP2195914		Support, Housing   (Replaces: 2194712)				$ 98.82
7	WP2315522		Retainer, Thermostat   (Replaces: 2315522)				$ 10.44
8	WP2321258		Thermostat (also Order 542369 Cement)   (Replaces: 2321258)				$ 93.54
9	WP489464		Screw (3)   (Replaces: 489464)			Immediately	$ 7.54
10	WP67001255		Pan, Ice   (Replaces: 67001255)				$ 191.91
11	W10001280		Screw (2)		Appelez-nous	-
12	12544120		Valve, Water Inlet		Appelez-nous	-
13	WPA3223101		Insert, Tube   (Replaces: A3223101)				$ 7.39
14	WPB5705307		Tubing, Plastic   (Replaces: 67003729)				$ 11.75
15	12975112		Harness, Ice Maker		Appelez-nous	-
16	WP2256087		Bracket, Icemaker   (Replaces: 8170360)				$ 87.89
17	WP489128		Screw   (Replaces: 67006662)				$ 10.26
18	WPW10289690		Cover   (Replaces: 67004710)				$ 7.94
19	W10122522		Module Assembly		Appelez-nous	-
20	W10001240		Screw (3)				$ 8.30
21	WP628379		Clip   (Replaces: 628379)				$ 9.99
22	12918001		Funnel, Fill Tube   (Replaces: 67005603)			Immediately	$ 11.73
100	WPW10190972		Icemaker Assembly   (Replaces: 67006665)				$ 159.74
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	10244904		Coupling				$ 25.37
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 84.73
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)				$ 53.90
	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 218.83
	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 7.62
	31462		Cleaner, 10 Oz. Stainless Steel		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
