SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts

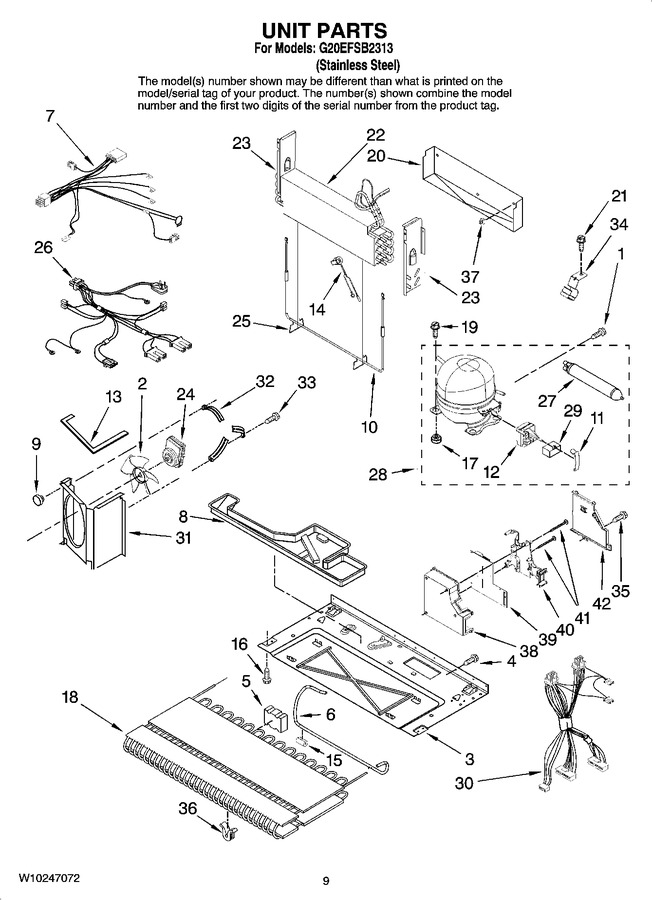

05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	67005889		Basepan		Appelez-nous	-
4	67006425		Screw (2)			Immediately	$ 7.30
5	67002235		Block, Condenser		Appelez-nous	-
6	WP12866903		Tube, Discharge   (Replaces: 12866903)			Immediately	$ 140.21
7	W10169652		Harness, Evap Heater		Appelez-nous	-
8	67007176		Pan, Drain		Appelez-nous	-
9	61004743		Grommet (3)				$ 5.51
10	12729120		Heater, Defrost		Appelez-nous	-
11	67007052		Clip, Capacitor		Appelez-nous	-
12	67006660		Relay, Combo (production)		Appelez-nous	-
12	WP2303345		Relay, Combo (service)   (Replaces: 2303345)				$ 132.66
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.94
14	W11084905		Thermostat, Def.   (Replaces: 12639322SP)		Appelez-nous	-
15	67005680		Grommet (2)				$ 22.10
16	12992101		Screw (4)   (Replaces: 67006573)		Appelez-nous	-
17	WPW10169124		Grommet (4)   (Replaces: 67003493)				$ 7.55
18	WP67006131		Condenser   (Replaces: 67006131)				$ 385.08
19	12846902		Screw (3)   (Replaces: 67006432)				$ 13.64
20	W11547653		Tray, Drip   (Replaces: 67002490)				$ 57.02
21	WP33001882		Screw   (Replaces: 67006737)				$ 83.71
22	12002041		Evaporator Kit (incl. Evap., Heat Shield, & Instr. Sheet)				$ 366.06
23	67001084		Dam (right Side)		Appelez-nous	-
23	67001083		Dam (left Side)		Appelez-nous	-
24	WPW10246191		Motor, Fan   (Replaces: W10211284)				$ 317.39
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	W10169567		Harness, Unit				$ 144.44
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	12049772		Compressor Kit (includes Items 12,17,27,& 29)		Appelez-nous	-
29	WP2201147		Capacitor   (Replaces: 67007162)				$ 135.42
30	12972903SP		Harness, Hv		Appelez-nous	-
31	67006661		Shroud		Appelez-nous	-
32	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 72.27
33	WP67004954		Screw (3)   (Replaces: 67004954)				$ 8.18
34	10547003		Clip, Drier		Appelez-nous	-
35	67006615		Screw, Cover		Appelez-nous	-
36	WPW10137529		Grommet, Cond. (4)   (Replaces: W10137529)				$ 8.76
37	10623002		Clip, Evaporator				$ 12.11
38	12889402SP		Box, Hv		Appelez-nous	-
39	W10168780		Board, Hv Control (inc. Inst. Sheet)		Appelez-nous	-
40	12889502SP		Spacer, Hv Box		Appelez-nous	-
41	67006550		Screw (2)		Appelez-nous	-
42	67005421		Cover, Hv Box				$ 64.83
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
	978026		Valve, Access (5/16``)			Immediately	$ 134.49
	876764		Valve, Access(3/16``)			Immediately	$ 95.92
	978030		Valve, Access (3/4``)				$ 137.25
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
