01 - Lower Oven Parts

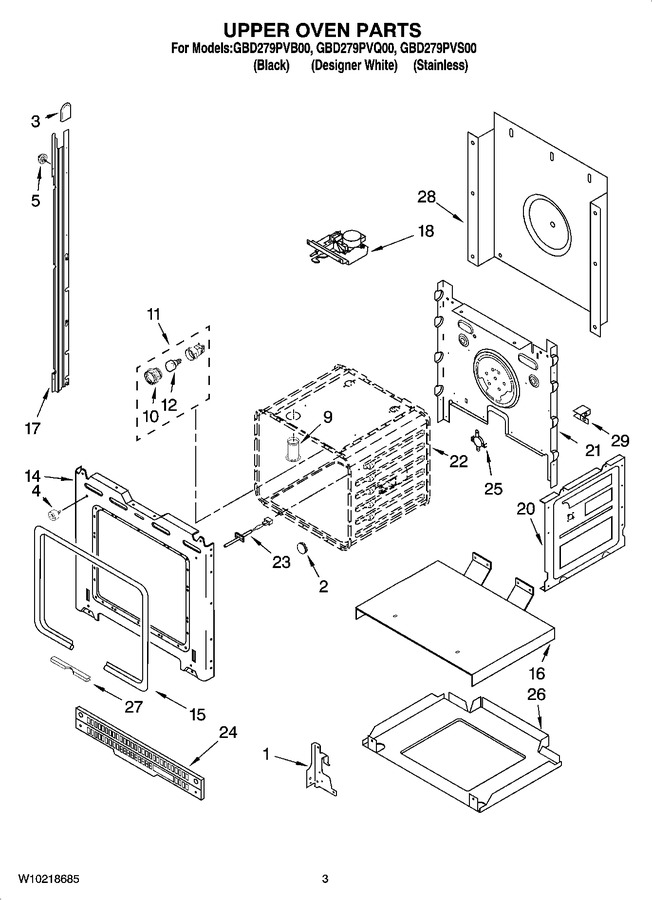

02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4455605		Reciever, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
1	WP4455606		Reciever, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
2	4448982		Button, Plug		Appelez-nous	-
3	4451605		Cap, Spacer				$ 38.55
4	W10105790		Bumper, Door				$ 7.41
5	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10169756		Lens, Light				$ 42.19
11	WPW10307114		Assembly, Oven Light   (Replaces: W10009940)			Immediately	$ 116.01
12	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	W10130370		Frame, Front				$ 79.39
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
16	4451477		Support, Insulation		Appelez-nous	-
17	WP8302793		Rail, Side (right)   (Replaces: 8302793)				$ 154.74
17	8302794		Rail, Side (left)				$ 164.19
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
18	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
21	W10161109		Back, Chassis		Appelez-nous	-
21	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
23	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	4452266		Trim, Center Vent				$ 60.71
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	WP9759242		Thermostat   (Replaces: 9759242)			Immediately	$ 85.57
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4455529		Base, Chassis		Appelez-nous	-
27	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
27	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
28	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
28	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
29	4449845		Support, Bracket		Appelez-nous	-
29	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
	4449315		Insulation, Wrap				$ 64.81
	4450364		Insulation, Back		Appelez-nous	-
