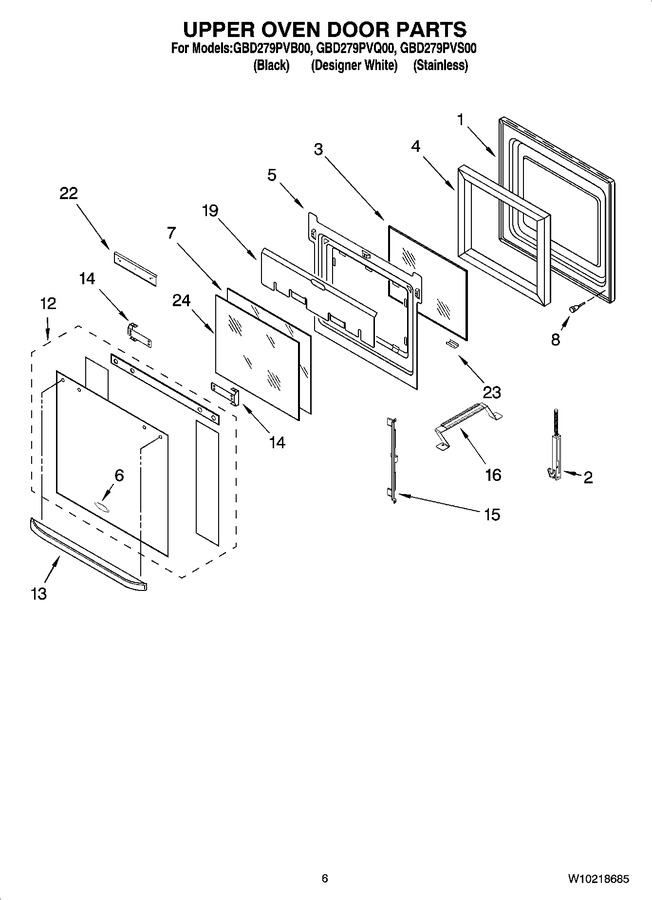

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Panel, Door				$ 128.78
2	WP9760575		Hinge, Door (for Stainless Model Only) (right)   (Replaces: 9760575)			Immediately	$ 64.57
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
2	WP9760571		Hinge, Door (right)   (Replaces: 9760571)			Immediately	$ 114.51
2	WP9760572		Hinge, Door (left)   (Replaces: 9760572)				$ 111.96
2	WP9760576		Hinge, Door (for Stainless Model Only) (left)   (Replaces: 9760576)			Immediately	$ 56.46
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4451721		Insulation, Door				$ 37.62
5	4457131		Retainer, Glass				$ 31.95
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
6	8303810		Name Plate		Appelez-nous	-
7	9759224		Glass, Inner				$ 81.28
8	4448520		Bumper, Door				$ 22.25
12	W10176987		Assembly, Door Glass (stainless)				$ 184.73
12	W10200757		Assembly, Door Glass (black)				$ 124.66
12	W10200758		Assembly, Door Glass (white)		Appelez-nous	-
13	W10169804		Door Handle (white)				$ 71.46
13	W10169802		Door Handle (black)				$ 124.28
13	WPW10169800		Door Handle (stainless)   (Replaces: W10169800)				$ 193.90
14	4455804		Bracket, Handle (left)				$ 25.95
14	4455803		Bracket, Handle (right)				$ 30.70
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
19	4457102		Shield, Top Heat				$ 31.70
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
22	4457113		Shield, Bottom Heat				$ 33.29
23	W10158497		Retainer, Glass Clip (stainless)				$ 5.65
23	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
23	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
24	9759227		Glass. Inner				$ 81.36
