SELECT A DIAGRAM

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts

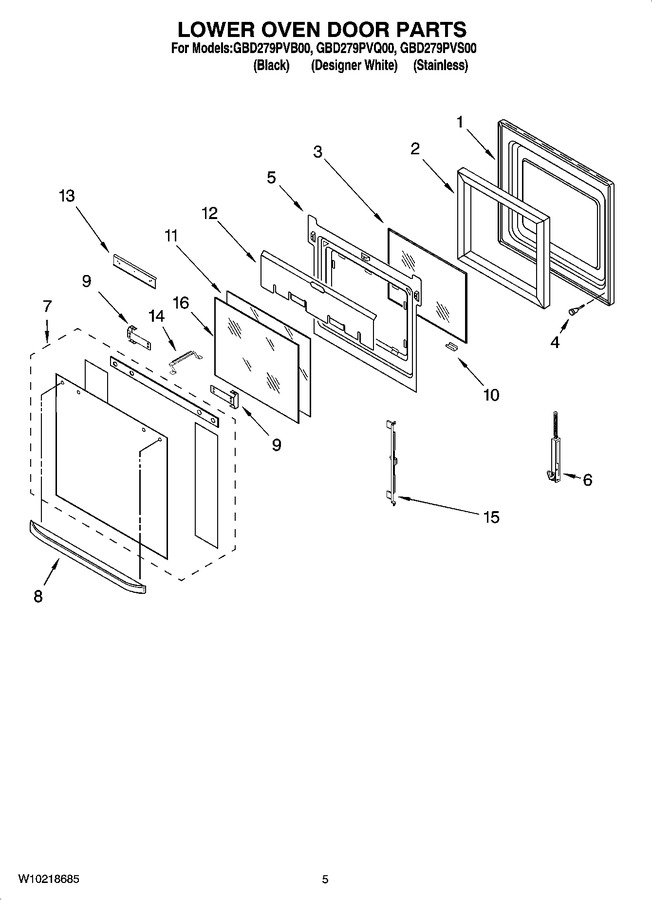

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Panel, Door				$ 128.78
2	4451721		Insulation, Door				$ 37.62
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4448520		Bumper, Door				$ 22.25
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	4457131		Retainer, Glass				$ 31.95
6	9760566		Hinge, Door (for Stainless Model Only) (left)		Appelez-nous	-
6	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	9760565		Hinge, Door (for Stainless Model Only) (right)				$ 33.78
6	WP9760572		Hinge, Door (left)   (Replaces: 9760572)				$ 111.96
6	WP9760571		Hinge, Door (right)   (Replaces: 9760571)			Immediately	$ 114.51
7	W10200758		Assembly, Door Glass (white)		Appelez-nous	-
7	W10200757		Assembly, Door Glass (black)				$ 124.66
7	W10176987		Assembly, Door Glass (stainless)				$ 184.73
8	W10169802		Door Handle (black)				$ 124.28
8	W10169804		Door Handle (white)				$ 71.46
8	WPW10169800		Door Handle (stainless)   (Replaces: W10169800)				$ 193.90
9	4455804		Bracket, Handle (left)				$ 25.95
9	4455803		Bracket, Handle (right)				$ 30.70
10	4450863		Retainer, Glass-clip (black)		Appelez-nous	-
10	W10158497		Retainer, Glass Clip (stainless)				$ 5.65
10	4450864		Retainer, Glass-clip (white)		Appelez-nous	-
11	9759224		Glass, Inner				$ 81.28
12	4457102		Sheild, Heat-top				$ 31.70
13	4457113		Sheild, Heat-bottom				$ 33.29
14	9759230		Bracket, Central Glass				$ 36.30
15	WP9759229		Bracket, Glass   (Replaces: 9759229)				$ 187.50
16	9759227		Glass. Inner				$ 81.36

    View Diagram in Separate Window       Print Part List
