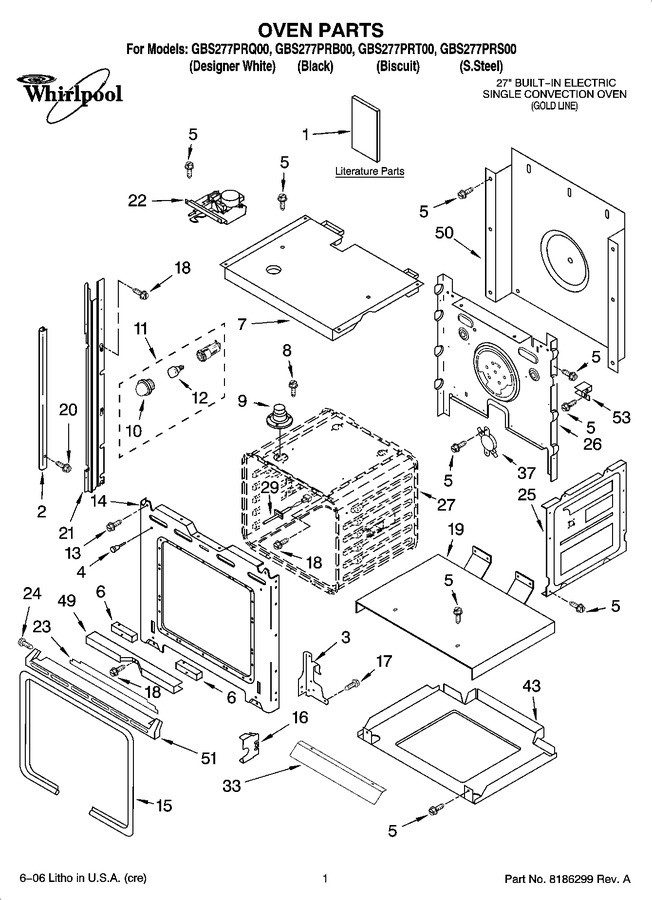

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	8303648		Installation Instructions		Appelez-nous	-
1	8303645		Use & Care Guide		Appelez-nous	-
1	8301758		Tech Sheet		Appelez-nous	-
1	8302333		Installation/ Undercounter		Appelez-nous	-
1	8301928		Installation/ Micro Trim Kit		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
2	8302909		Trim, Side (rh White)		Appelez-nous	-
2	8302910		Trim, Side (lh White)				$ 35.87
2	8302907		Trim, Side (lh Black)		Appelez-nous	-
2	8302912		Trim, Side (lh Biscuit)		Appelez-nous	-
2	8303214		Trim, Side (lh S.steel)		Appelez-nous	-
2	8302908		Trim, Side (rh Black)		Appelez-nous	-
2	8303213		Trim, Side (rh S.steel)		Appelez-nous	-
2	8302911		Trim, Side (rh Biscuit)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	4448520		Bumper, Door				$ 22.25
5	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 7.55
6	4452490		Spacer, Foam				$ 34.83
7	4455864		Top, Chassis				$ 22.85
8	W11233072		Screw (2)   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Light Assy, Rear		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
14	4455611		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
16	4452152		Bracket, Mounting				$ 35.18
17	WP4449743		Screw, 8-32 X 3/8   (Replaces: 4449743)				$ 7.55
18	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
19	4451477		Support, Insulation		Appelez-nous	-
20	WP8281236		Screw (black)   (Replaces: 8281236)				$ 8.16
20	WP694091		Screw (white)   (Replaces: 694091)				$ 7.55
21	8303116		Rail, Side (left)		Appelez-nous	-
21	8303115		Rail, Side (right)				$ 164.47
22	WP9760889		Latch, Motorized   (Replaces: 9759525)			Immediately	$ 345.08
23	8300154		Insulation, Bottom Vent		Appelez-nous	-
24	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
24	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452233		Back, Chassis		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
33	9760676		Deflector, Vent		Appelez-nous	-
37	WP9759243		Safety (tod) Swtch (thermostat (temp))   (Replaces: 9759243)			Immediately	$ 55.44
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	8302940		Trim, Bottom (s.steel)		Appelez-nous	-
51	8302939		Trim, Bottom (biscuit)		Appelez-nous	-
51	8302937		Trim, Bottom (black)		Appelez-nous	-
51	8302938		Trim, Bottom (white)		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
53	4449845		Support, Bracket		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
