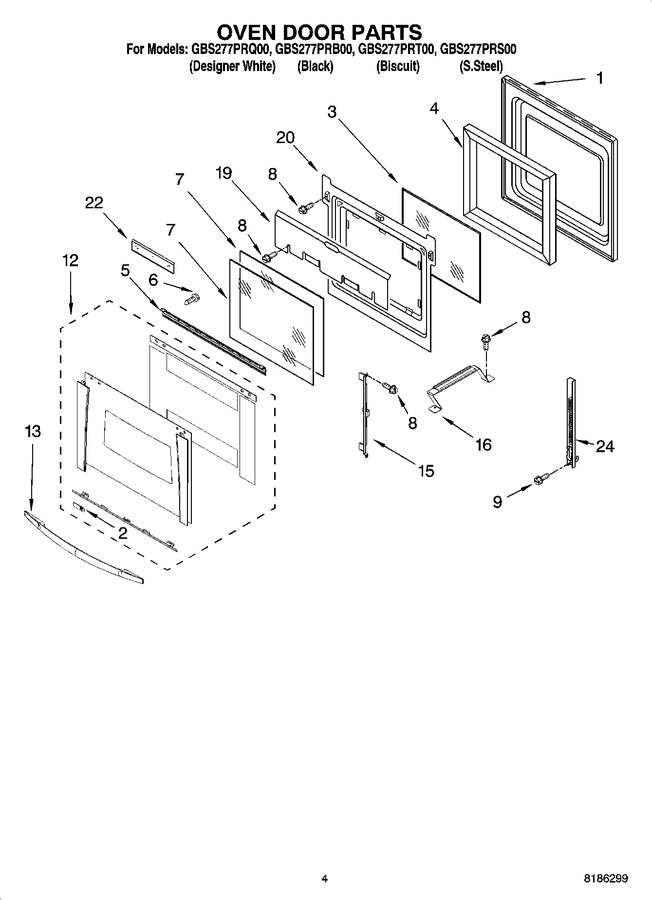

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Door Liner				$ 128.78
2	8303810		Name Plate		Appelez-nous	-
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4451721		Insulation, Door				$ 37.62
5	8303166		Bracket, Handle		Appelez-nous	-
6	W10276642		Screw   (Replaces: 4451040)				$ 6.41
7	9759224		Glass, Inner				$ 81.28
8	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 7.55
9	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
12	8303286		Door Glass, Assy (s.steel)		Appelez-nous	-
12	8303304		Door Glass, Assy (white)		Appelez-nous	-
12	8303298		Door Glass, Assy (black)		Appelez-nous	-
12	8303308		Door Glass, Assy (biscuit)		Appelez-nous	-
13	8302811		Door Handle (white)		Appelez-nous	-
13	8303163		Door Handle (s.steel)		Appelez-nous	-
13	8302812		Door Handle (biscuit)		Appelez-nous	-
13	8302810		Door Handle (black)		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
19	4457102		Shield, Heat				$ 31.70
20	4457131		Retainer, Glass				$ 31.95
22	4457113		Shield, Heat (bottom)				$ 33.29
24	WP9760575		Hinge, Door (right Side)   (Replaces: 8300575)			Immediately	$ 64.57
24	WP9760576		Hinge, Door (left Side)   (Replaces: 8300576)			Immediately	$ 56.46
