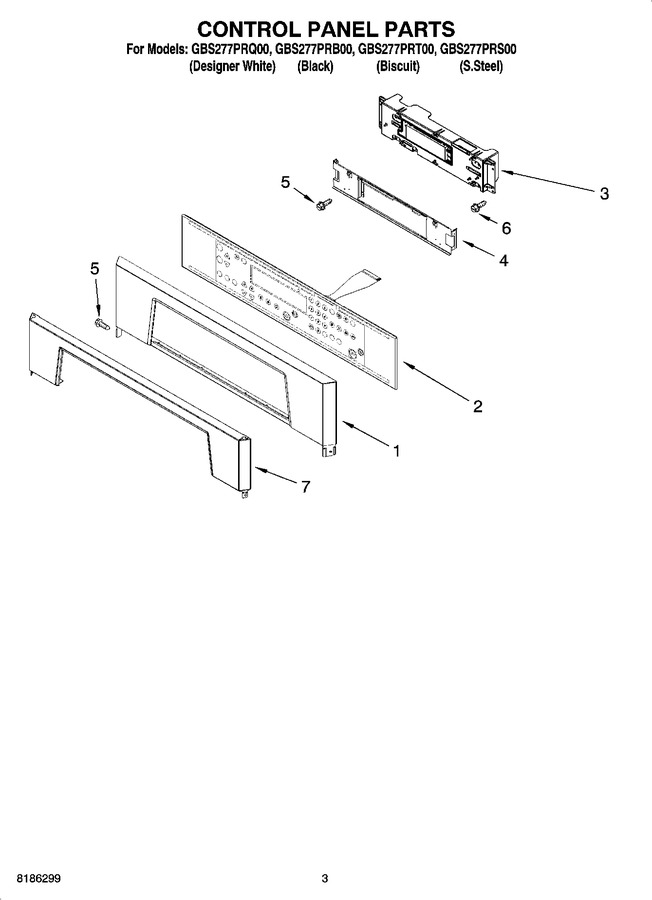

02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8302845 | Control Panel (white) |
|
$ 114.38 | |||||
| 1 | 8302844 | Control Panel (black/stainless) |
|
$ 119.18 | |||||
| 1 | 8302846 | Control Panel (biscuit) |
|
$ 107.51 | |||||
| 1 | 8302878 | Control Panel (s.steel) |
|
- | |||||
| 2 | 8303180 | Assy, Switch (black) |
|
- | |||||
| 2 | 8303222 | Assy, Switch (white) |
|
- | |||||
| 2 | 8303228 | Assy, Switch (biscuit) |
|
- | |||||
| 3 | 8303505 | Assy, Control |
|
- | |||||
| 4 | 8302991 | Backer, Control |
|
- | |||||
| 5 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 6 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 7 | 8302878 | Trim-panel (use On S.steel Model Only) |
|
- |
