SELECT A DIAGRAM

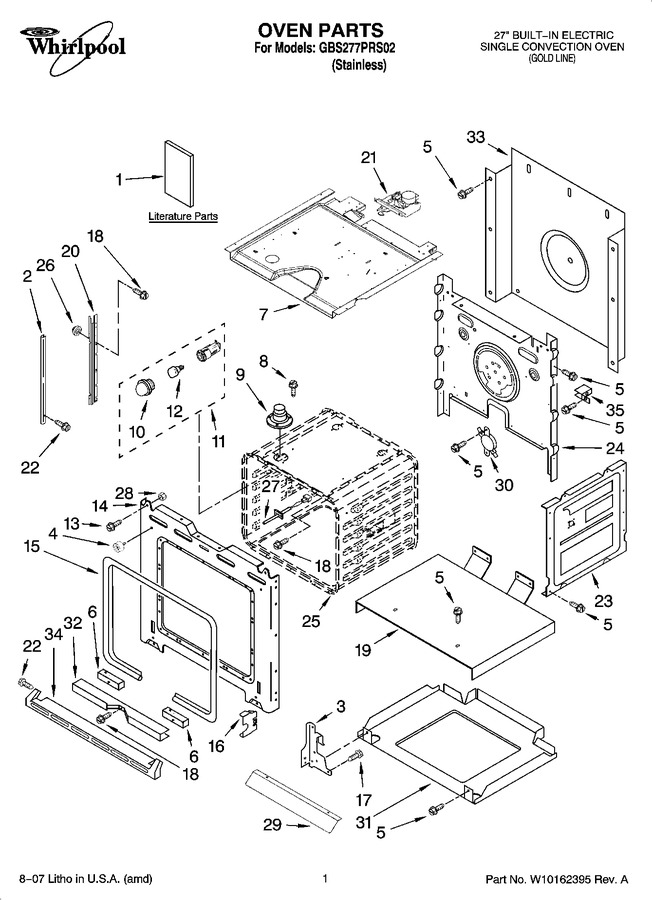

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8301928		Installation/ Micro Trim Kit		Appelez-nous	-
1	3191638		Safer Cooking Tips (english)		Appelez-nous	-
1	9759133		Safer Cooking Tips (french)		Appelez-nous	-
1	8303648		Installation Instructions		Appelez-nous	-
1	8304075		Owners Manual (english)		Appelez-nous	-
1	8304076		Owners Manual (french)		Appelez-nous	-
1	8301758		Tech Sheet		Appelez-nous	-
2	W10136340		Trim, Side (right)		Appelez-nous	-
2	W10136341		Trim, Side (left)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door				$ 7.41
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
6	4452490		Spacer, Foam				$ 34.83
7	4455864		Top, Chassis				$ 22.85
8	W11233072		Screw (2)   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10067870		Lens, Light				$ 65.50
11	WPW10734065		Light Assembly   (Replaces: W10009930)				$ 101.46
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	W10130370		Frame, Front				$ 79.39
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
16	4452152		Bracket, Mounting				$ 35.18
17	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
18	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
19	4451477		Support, Insulation		Appelez-nous	-
20	8303116		Rail, Side (left)		Appelez-nous	-
20	8303115		Rail, Side (right)				$ 164.47
21	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
22	WP3400805		Screw   (Replaces: 3400805)				$ 7.55
23	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
24	4452233		Back, Chassis		Appelez-nous	-
26	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
27	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
28	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
29	9760676		Deflector, Vent		Appelez-nous	-
30	WP9759243		Thermostat   (Replaces: 9759243)			Immediately	$ 55.44
31	4455529		Base, Chassis		Appelez-nous	-
32	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
33	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
34	W10145000		Trim, Bottom		Appelez-nous	-
35	4449845		Support, Bracket		Appelez-nous	-
35	4450364		Insulation, Back		Appelez-nous	-
35	4449315		Insulation, Wrap				$ 64.81

    View Diagram in Separate Window       Print Part List
