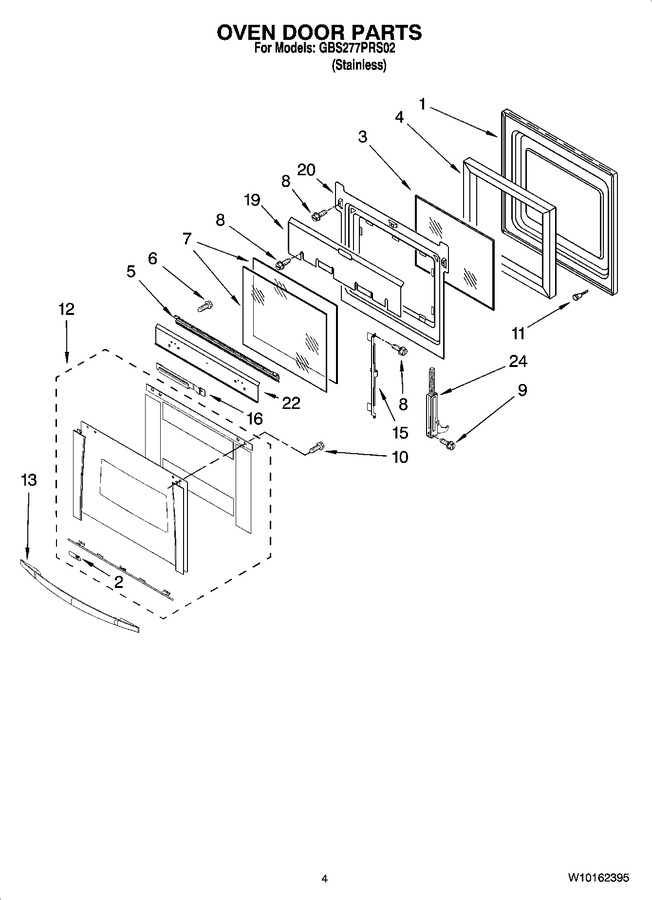

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Door Liner				$ 128.78
2	8303810		Name Plate		Appelez-nous	-
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4451721		Insulation, Door				$ 37.62
5	W10136472		Bracket, Handle		Appelez-nous	-
6	W10276642		Screw   (Replaces: 4451040)				$ 6.41
7	9759224		Glass, Inner				$ 81.28
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
10	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
11	4448520		Bumper, Door				$ 22.25
12	W10151077		Assembly, Door Glass		Appelez-nous	-
13	8303163		Door Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
19	4457102		Shield, Heat				$ 31.70
20	4457131		Retainer, Glass				$ 31.95
22	4457113		Shield, Heat (bottom)				$ 33.29
24	WP9760576		Hinge, Door (left)   (Replaces: 9760576)			Immediately	$ 56.46
24	WP9760575		Hinge, Door (right)   (Replaces: 9760575)			Immediately	$ 64.57
