Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8302844 Control Panel Special Order $ 119.18

2 W10112120 Membrane, Switch Appelez-nous -
3 8303885 Assembly, Control Enclosure Appelez-nous -
4 W10153087 Backer, Control Appelez-nous -
5 WP4449745 Screw   (Replaces: 4449745) Special Order $ 7.98

6 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 8.18

7 W10144999 Cladding, Control Panel Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

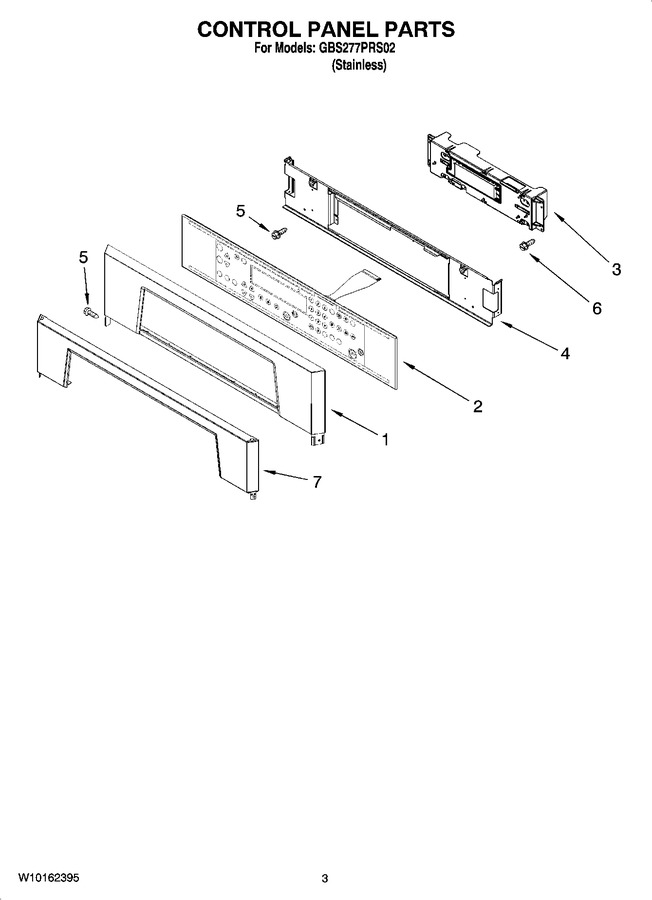

Diagram for GBS277PRS02
