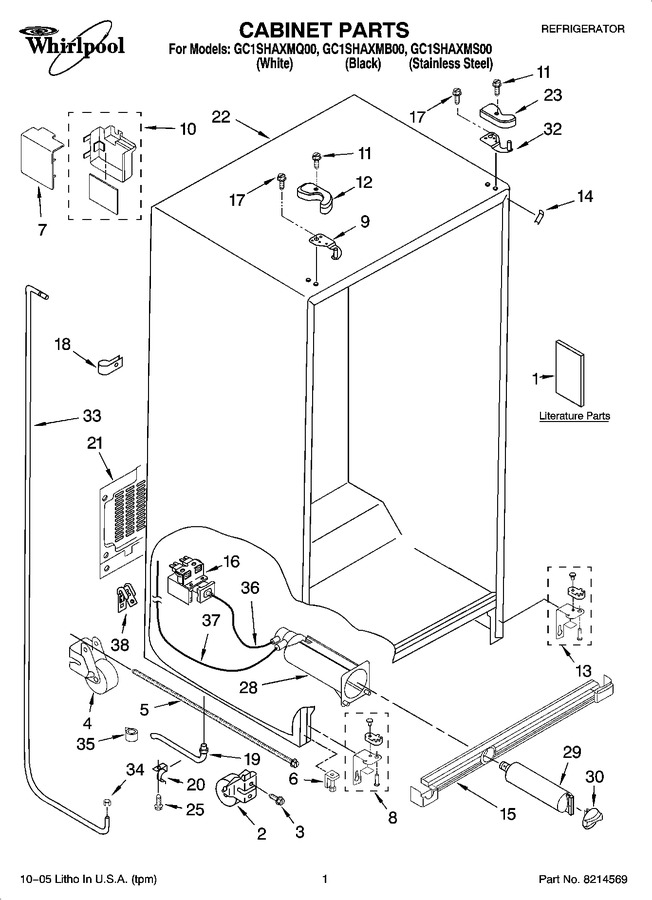

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206801 | Energy Guide (english) |
|
- | |||||
| 1 | 8206802 | Energy Guide (spanish) |
|
- | |||||
| 1 | 2315058 | Literature Energy Guide (owners Manual) |
|
- | |||||
| 1 | 8206803 | Energy Guide (service & Wiring Sheet) |
|
- | |||||
| 1 | 8206804 | Energy Guide (modular Icemaker Service Sheet) |
|
- | |||||
| 2 | 2203007 | Front Roller (2) |
|
- | |||||
| 3 | 8206676 | Screw |
|
- | |||||
| 4 | 2203008 | Roller (rear) (2) |
|
- | |||||
| 5 | 8206675 | Bolt |
|
- | |||||
| 6 | 8206684 | Holder, Adjustment |
|
- | |||||
| 7 | 8206805 | Cover, Control Box |
|
- | |||||
| 8 | 8206683 | Hinge, Bottom Fc |
|
- | |||||
| 9 | 8206678 | Hinge Top (fc) |
|
- | |||||
| 10 | 8206668 | P.c. Board, Main Control |
|
$ 0.01 | |||||
| 11 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.44 | |||||
| 12 | 8206784 | Hinge Cover (fc) (black) |
|
- | |||||
| 12 | 8206681 | Hinge Cover (fc) (white) |
|
- | |||||
| 13 | 8206682 | Hinge, Bottom Rc |
|
- | |||||
| 14 | 8206677 | Filler, Wrapper (white) |
|
- | |||||
| 14 | 8206783 | Filler, Wrapper (black) |
|
- | |||||
| 15 | 8206782 | Grille (black) |
|
- | |||||
| 15 | 8206692 | Grille (white) |
|
- | |||||
| 16 | 2199838 | Valve, Water |
|
- | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 18 | 8206810 | Clamp, Tube |
|
- | |||||
| 19 | 2199954 | Extension Tube |
|
- | |||||
| 20 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.74 | |||||
| 21 | 8206674 | Cover, Unit |
|
- | |||||
| 22 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 23 | 8206785 | Hinge Cover (rc) (black) |
|
- | |||||
| 23 | 8206680 | Hinge Cover (rc) (white) |
|
- | |||||
| 25 | 3400514 | Screw |
|
- | |||||
| 28 | WP2199840 | Housing, Water Filter (Replaces: 2199840) |
|
Immediately | $ 252.00 | ||||
| 29 | EDR5RXD1B | Water Filter (Replaces: 4396510) |
|
Immediately | $ 49.99 | ||||
| 30 | WP2186494B | Cap, Water Filter (black) (Replaces: 2186494B) |
|
Immediately | $ 53.20 | ||||
| 30 | WP2186494W | Cap, Water Filter (white) (Replaces: 2186494W) |
|
$ 55.72 | |||||
| 32 | 8206679 | Hinge Top, (rc) |
|
- | |||||
| 33 | 8206807 | Hose, Water |
|
- | |||||
| 34 | WP627018 | Nut (Replaces: 627018) |
|
$ 10.97 | |||||
| 35 | 8206808 | Valve |
|
- | |||||
| 36 | W11496481 | Tube, Filter Inlet (Replaces: 2203127) |
|
Immediately | $ 35.42 | ||||
| 37 | 2214613 | Tube, Filter Outlet |
|
- | |||||
| 38 | 8206809 | Clamp |
|
- |
