Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

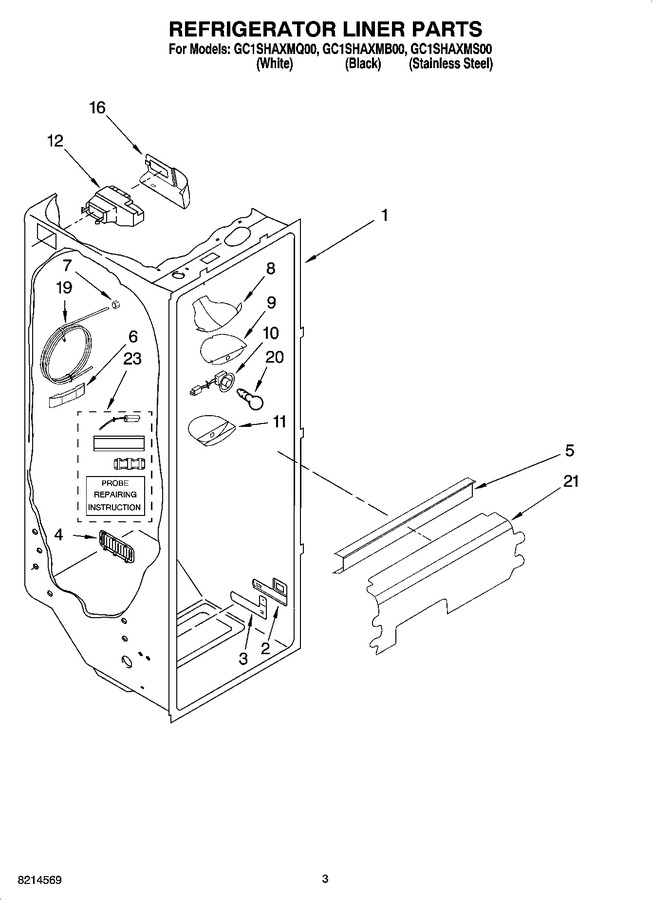

1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	8206756		Escutcheon, Meat Pan Control		Appelez-nous	-
3	2182757		Slide Meat Pan Control				$ 75.15
4	2182147		Louver		Appelez-nous	-
5	8206757		Trim, Light Lens		Appelez-nous	-
6	8206759		Support, Sensor		Appelez-nous	-
7	1129179		Nut,		Appelez-nous	-
8	8206760		Cover		Appelez-nous	-
9	8206761		Bracket		Appelez-nous	-
10	8206762		Socket Assembly		Appelez-nous	-
11	8206818		Housing, Light		Appelez-nous	-
12	WP2216112		Air Diffuser Assembly   (Replaces: 2216112)			Immediately	$ 358.86
16	8206758		Air Diffuser Cover		Appelez-nous	-
19	WP2256126		Reservoir   (Replaces: 4317969)				$ 168.85
20	8206749		Light Bulb		Appelez-nous	-
21	8206755		Light Lens		Appelez-nous	-
23	8206667		Thermistor Kit				$ 15.07

    View Diagram in Separate Window       Print Part List
