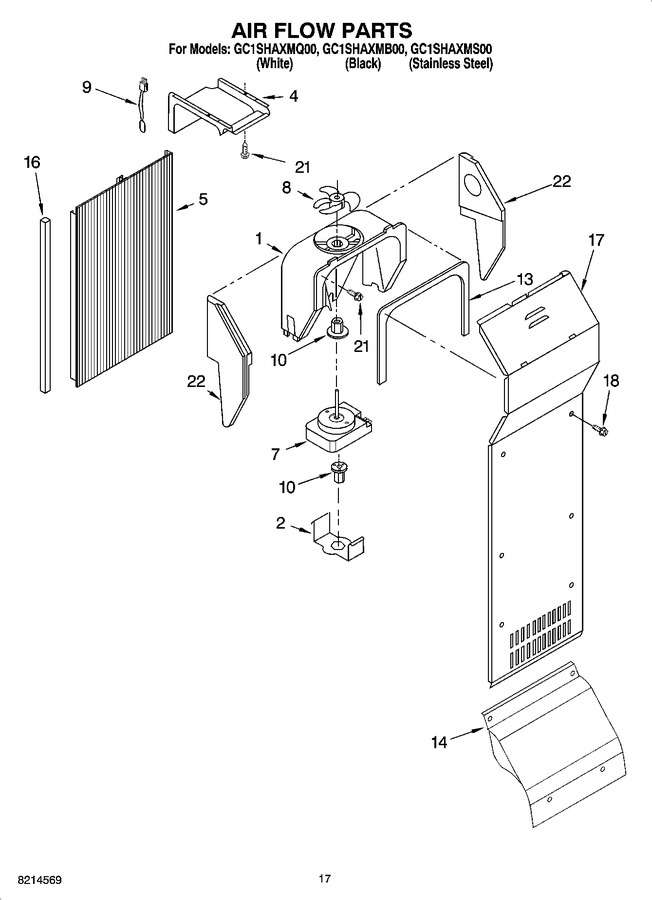

10 - Air Flow Parts


11 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206765		Fan Scroll		Appelez-nous	-
2	2155590		Retainer Fan Motor				$ 5.83
4	8206766		Air Duct, Upper		Appelez-nous	-
5	8206768		Air Duct Freezer		Appelez-nous	-
7	8206672		Fan Motor		Appelez-nous	-
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
9	8206667		Thermistor Kit				$ 15.07
10	8206767		Fan Grommet		Appelez-nous	-
13	WP2155789		Gasket, Evaporator Cover   (Replaces: 2155789)				$ 7.79
14	8206769		Cover, Lower Evaporator		Appelez-nous	-
16	4388500		Gasket   (Replaces: 2203876)				$ 90.39
17	2206314		Cover, Evaporator				$ 61.73
18	W11233072		Screw (6)   (Replaces: 489355)			Immediately	$ 14.02
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	4388358		Support Kit (contains Right And Left)				$ 31.16
