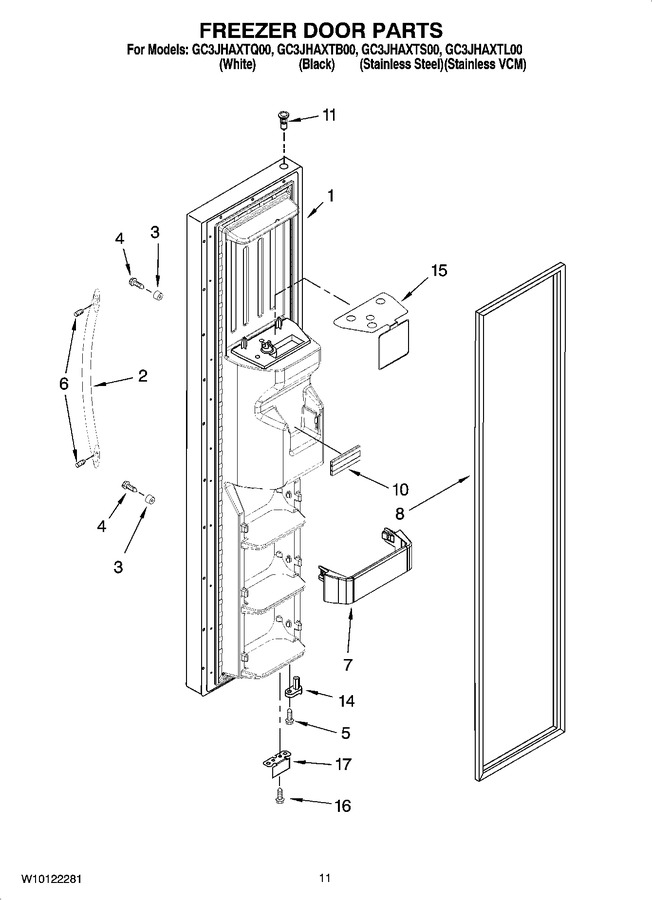

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10120249		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	W10120250		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2320126SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2320126LG		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
2	2254600S		Handle (includes 6) (stainless)				$ 106.71
2	WP2254600W		Handle (includes 6) (white)   (Replaces: 2254600W)				$ 235.14
2	WP2254600B		Handle (includes 6) (black)   (Replaces: 2254600B)				$ 208.77
3	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
4	WP488163		Screw   (Replaces: 488208)				$ 7.54
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	W11366418		Screw   (Replaces: W10010140)			Immediately	$ 15.79
7	WP2171157		Shelf Bin (3)   (Replaces: 2171157K)				$ 60.67
8	2223912		Door Gasket, Magnetic (black)		Appelez-nous	-
8	2223850		Door Gasket, Magnetic (mist)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
14	2307050		Door Closer, Upper Cam				$ 39.47
15	2304895		Safety Barrier		Appelez-nous	-
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2306940B		Bracket, Door Stop (black)				$ 37.11
17	2306940		Bracket, Door Stop (white)				$ 97.08
