SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)

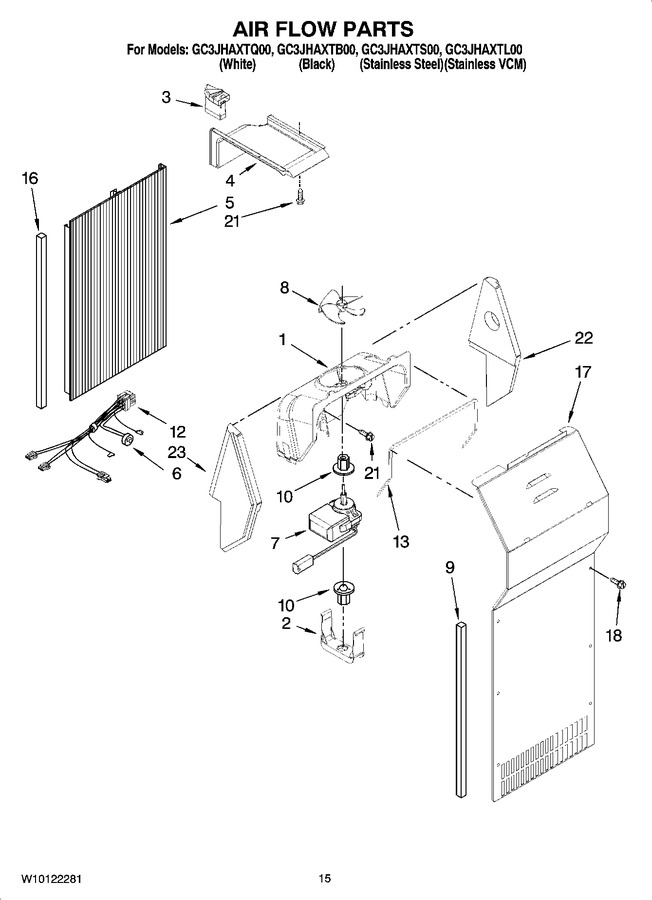

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Fan Scroll   (Replaces: 2182120)			Immediately	$ 111.97
2	2155590		Retainer Fan Motor				$ 5.83
3	2223298		Air Scoop		Appelez-nous	-
4	2223303		Air Duct, Upper				$ 102.31
5	2223771		Air Duct Freezer		Appelez-nous	-
6	WPW10225581		Bi-metal, Defrost   (Replaces: 2319914)			Immediately	$ 50.77
7	WP2315548		Fan Motor   (Replaces: 2315548)				$ 214.94
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket, Evaporator Cover (2)   (Replaces: 2304241)			Immediately	$ 82.80
10	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 7.77
12	2310339		Harness, Fan Evaporator (includes 6)		Appelez-nous	-
13	WP2155789		Gasket, Fan Scroll   (Replaces: 2155789)				$ 7.79
16	4388500		Gasket   (Replaces: 2203876)				$ 90.39
17	2223413		Cover, Evaporator (includes 9)		Appelez-nous	-
18	4389654		Screw (6)   (Replaces: 8281159)				$ 13.89
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	2223395		Support, R.s		Appelez-nous	-
23	4388358		Support, L.s   (Replaces: 2203596)				$ 31.16

    View Diagram in Separate Window       Print Part List
