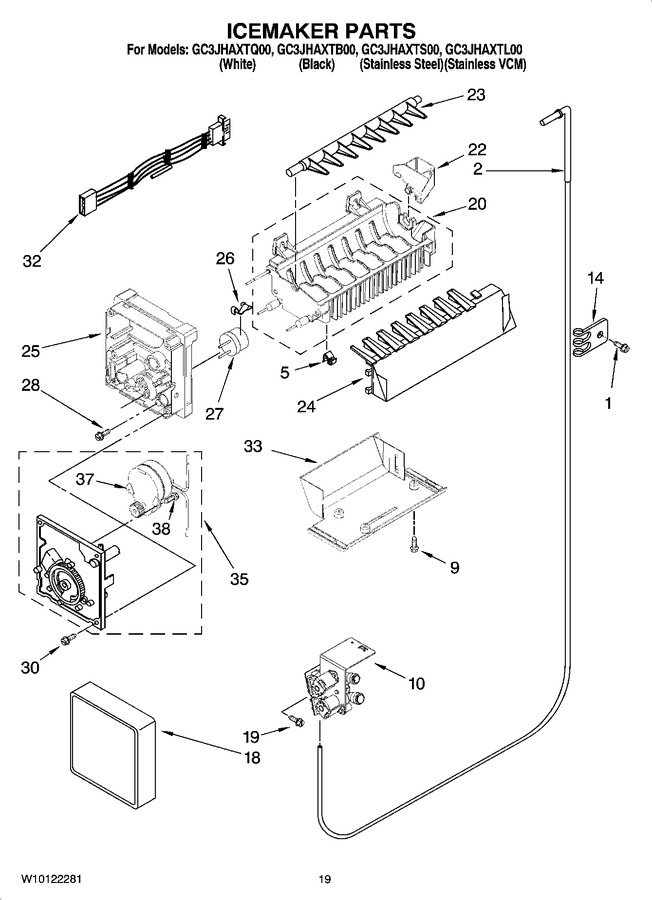

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 2 | WP2256096 | Fitting, Water Tube (Replaces: 2256096) |
|
Immediately | $ 203.86 | ||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 10 | W10247725 | Water Valve Asm (Replaces: 2315533) |
|
Immediately | $ 213.01 | ||||
| 14 | WP488366 | Clip, Tube (Replaces: 2208136) |
|
$ 11.18 | |||||
| 18 | WPW10289690 | Cover (Replaces: 2174358) |
|
Immediately | $ 8.40 | ||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: 628228) |
|
$ 233.15 | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 24 | W10297244 | Ice Stripper (Replaces: 2198598) |
|
$ 73.14 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 27 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 627985) |
|
$ 109.18 | |||||
| 28 | 8533917 | Screw |
|
$ 13.37 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 32 | WP2187467 | Harness, Wiring (Replaces: 2187467) |
|
$ 128.93 | |||||
| 33 | 2303583 | Bracket, Ice Maker Mounting |
|
$ 46.76 | |||||
| 35 | 8201515 | Module Assembly (includes Items 37 & 38) (Replaces: 626678) |
|
Immediately | $ 141.64 | ||||
| 37 | W10190935 | Motor (Replaces: 626684) |
|
Immediately | $ 110.07 | ||||
| 38 | 489136 | Screw |
|
$ 10.29 | |||||
| 100 | 2198597 | Complete Icemaker Assembly |
|
Immediately | $ 182.32 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 799340 | Paint, Bulk (1qt.) (black) |
|
- | ||||||
| 8171358 | Paint, Bulk (1qt.) (graphite) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| 2308388 | Cleaner, Stainless Steel |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 89.66 | ||||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 57.04 | ||||||
| 8171357 | Paint, Pressurized Spray (12 Oz.) (graphite) |
|
$ 82.31 | ||||||
| 80051 | Paint, Touch-up (1/2oz.) (graphite) |
|
$ 7.64 |
