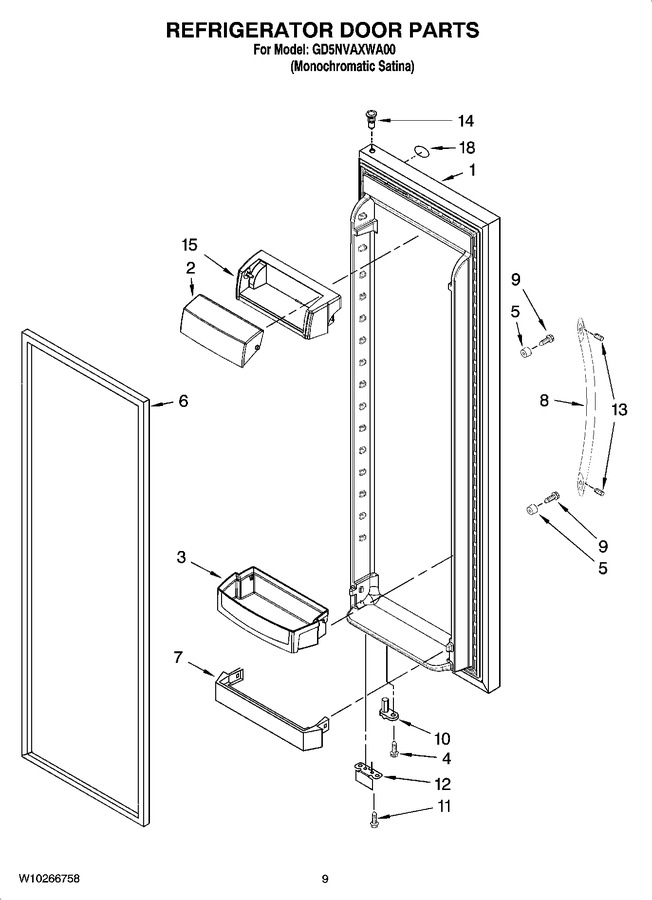

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2319737LAP | Refrigerator Door (includes Item 6) (mono Satina) |
|
- | |||||
| 2 | WP2256101 | Dairy Door (Replaces: 2256101) |
|
Immediately | $ 85.16 | ||||
| 3 | W10254149 | Door Bin (3) |
|
- | |||||
| 4 | WP3400012 | Screw (Replaces: W10142285) |
|
$ 7.82 | |||||
| 5 | WPW10170540 | Clip (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 6 | WPW10136734 | Door Gasket, Magnetic (apollo Grey) (Replaces: 2326338) |
|
$ 319.42 | |||||
| 7 | WP2156022 | Trivet (Replaces: 2156022) |
|
Immediately | $ 72.80 | ||||
| 8 | 2254600S | Handle (includes 13) (stainless) |
|
$ 106.71 | |||||
| 9 | W10141596 | Screw |
|
$ 8.78 | |||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.75 | |||||
| 12 | W10185570 | Bracket, Door Stop (zinc) |
|
$ 11.59 | |||||
| 13 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 14 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 15 | 2255420 | Door Compartment |
|
$ 49.86 | |||||
| 18 | 2220214 | Nameplate |
|
$ 32.43 |
