01 - Cabinet Parts

Diagram for 02 - Refrigerator Liner Parts
02 - Refrigerator Liner Parts

Diagram for 03 - Refrigerator Shelf Parts
03 - Refrigerator Shelf Parts

Diagram for 04 - Freezer Liner Parts
04 - Freezer Liner Parts

Diagram for 05 - Motor And Ice Container Parts
05 - Motor And Ice Container Parts

Diagram for 06 - Refrigerator Door Parts
06 - Refrigerator Door Parts

Diagram for 07 - Freezer Door Parts
07 - Freezer Door Parts

Diagram for 08 - Dispenser Front Parts
08 - Dispenser Front Parts

Diagram for 09 - Air Flow Parts
09 - Air Flow Parts

Diagram for 10 - Control Parts
10 - Control Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Icemaker Parts
12 - Icemaker Parts

No Diagram Image Available
13 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10134300 Control Box Special Order $ 87.91

2 2216879 Cover, Ctrl Box Appelez-nous -
3 WP3196557 Screw (4)   (Replaces: 3196537) In-Stock Immediately $ 7.95

4 W10141140 Control Assy Special Order $ 239.86

5 W10167504 Wire Assy, Ctrl Box Appelez-nous -
6 W10245634 Control Box Assy Appelez-nous -
7 WP2149705 Switch   (Replaces: 2219875) In-Stock Immediately $ 40.40

8 940014 Hole Plug Special Order $ 18.33

9 W10245636 Overlay Appelez-nous -
10 4387478 Light Socket   (Replaces: 2162085) In-Stock Immediately $ 115.67

11 W11679940 Light Bulb   (Replaces: W10194422) In-Stock Immediately $ 11.30

12 WP2188819 Thermistor   (Replaces: 2188819) In-Stock Immediately $ 46.01


    View Diagram in Separate Window     Print Icon   Print Part List

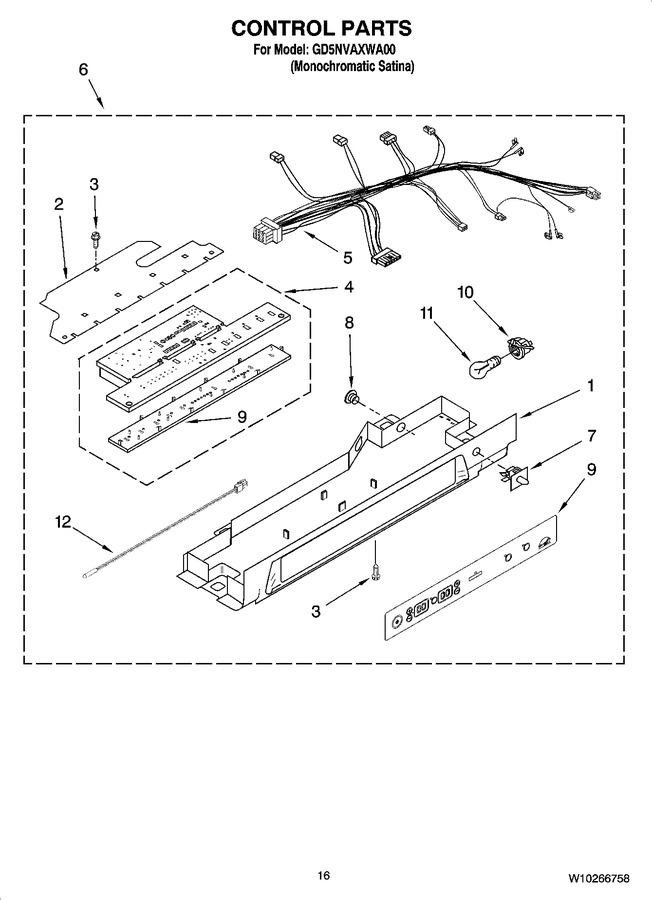

Diagram for GD5NVAXWA00
