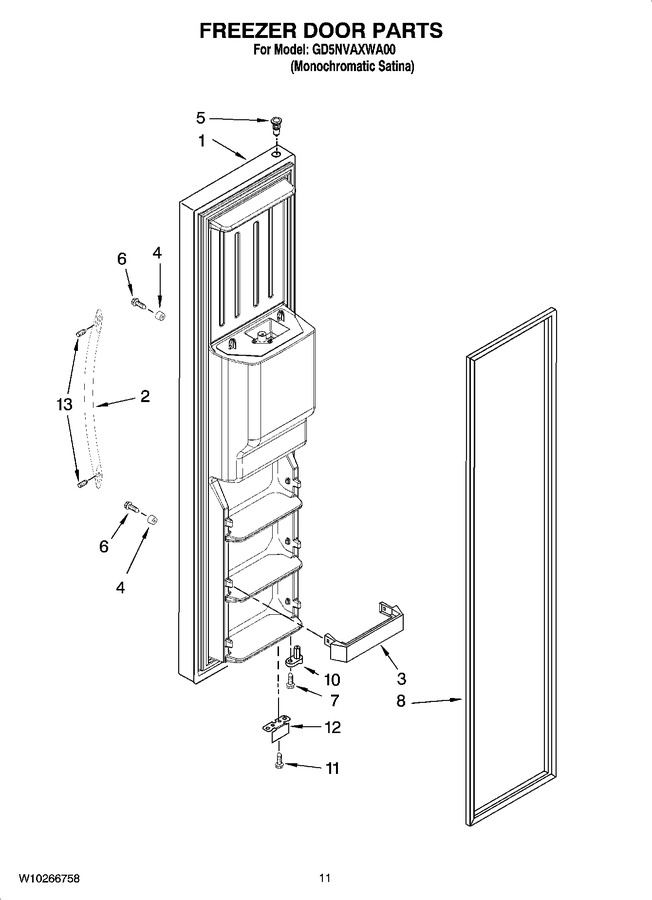

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10149632		Freezer Door (includes 8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
2	2319729S		Handle (includes 13) (stainless)		Appelez-nous	-
3	WP2171157		Trivet (3)   (Replaces: 2171157K)				$ 63.70
4	WPW10170540		Clip   (Replaces: 2219698)			Immediately	$ 8.51
5	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
6	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
7	W10141596		Screw				$ 9.22
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
10	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 21.16
11	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
12	2303113		Bracket, Door Stop (zinc)		Appelez-nous	-
13	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
	2317709		Tube, Water Dispenser		Appelez-nous	-
	2310084		Wire Assembly, Freezer Door		Appelez-nous	-
