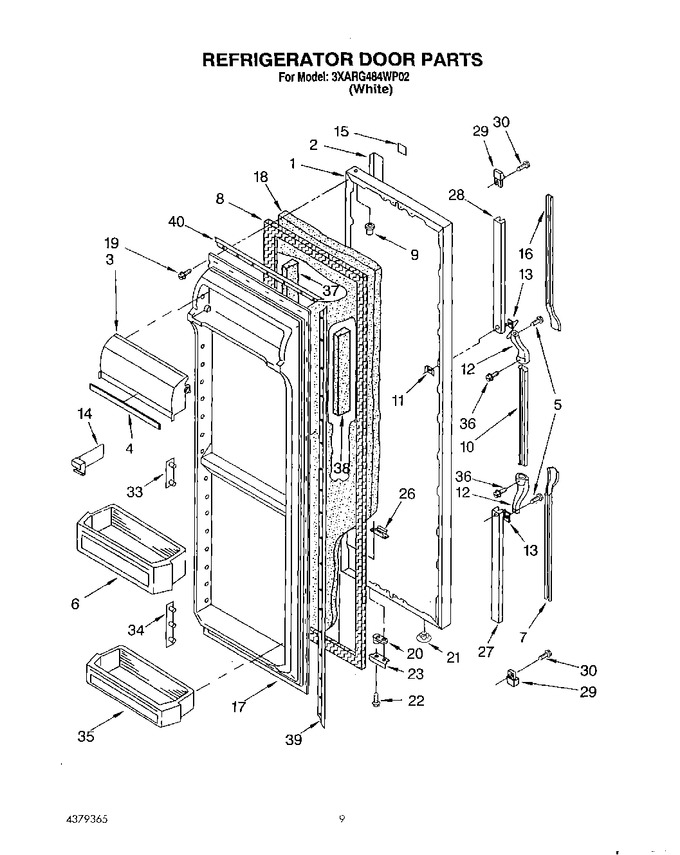

3XARG484WP02 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	4362040	Refrigerator Door (also Order Item 18)	Appelez-nous	-
2	1119061	Trim, Door	Appelez-nous	-
3	2148847	Door, Compartment	Appelez-nous	-
4	1118208	Trim, Compartment Door	Appelez-nous	-
5	WPW10141645	Screw (Replaces: 489084)			$ 8.05
6	1124847	Shelf Bin (2)	Appelez-nous	-
7	1119361	Insert, Handle	Appelez-nous	-
8	2188404A	Door Gasket, Magnetic (Replaces: 1125927)			$ 269.26
9	509929	Cap, Hinge Sleeve	Appelez-nous	-
10	1124713	Handle, Center	Appelez-nous	-
11	941242	Screw Anchor (2)	Appelez-nous	-
12	1119359	End Cap, Center Handle	Appelez-nous	-
13	935075	Shim	Appelez-nous	-
14	2152335	Divider, Bin	Appelez-nous	-
15	2148544	Nameplate	Appelez-nous	-
16	1119367	Insert, Handle	Appelez-nous	-
17	1129278	Panel, Interior Door	Appelez-nous	-
18	876029	Foam Insulation (required When Replacing Exterior Door Panel)	Appelez-nous	-
19	WP489069	Screw (Replaces: 489101)		Immediately	$ 8.40
20	4318165	Door Closer, Upper Cam (Replaces: 2155313)		Immediately	$ 29.74
21	2151653	Hole Plug	Appelez-nous	-
22	WP999367	Screw (Replaces: 489367)			$ 8.56
23	2155332	Bracket, Door Stop	Appelez-nous	-
26	2155335	Tap, Plate	Appelez-nous	-
27	1119360	Retainer, Insert (bottom)	Appelez-nous	-
28	1119366	Retainer, Insert	Appelez-nous	-
29	2156220	End Cap (2)	Appelez-nous	-
30	489075	Screw	Appelez-nous	-
33	1118048	Pin Plate (6)	Appelez-nous	-
34	1116986	Pin Plate (8)			$ 12.10
35	1124846	Shelf Bin (2)			$ 39.62
36	489022	Screw	Appelez-nous	-
37	1115379	Door Dike, Hinge Side	Appelez-nous	-
38	1119055	Door Dike, Handle Side	Appelez-nous	-
39	1117766	Gasket Retainer, Side (2)			$ 36.55
40	1118301	Gasket Retainer, Top & Bottom	Appelez-nous	-
