SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control, Lit/optional

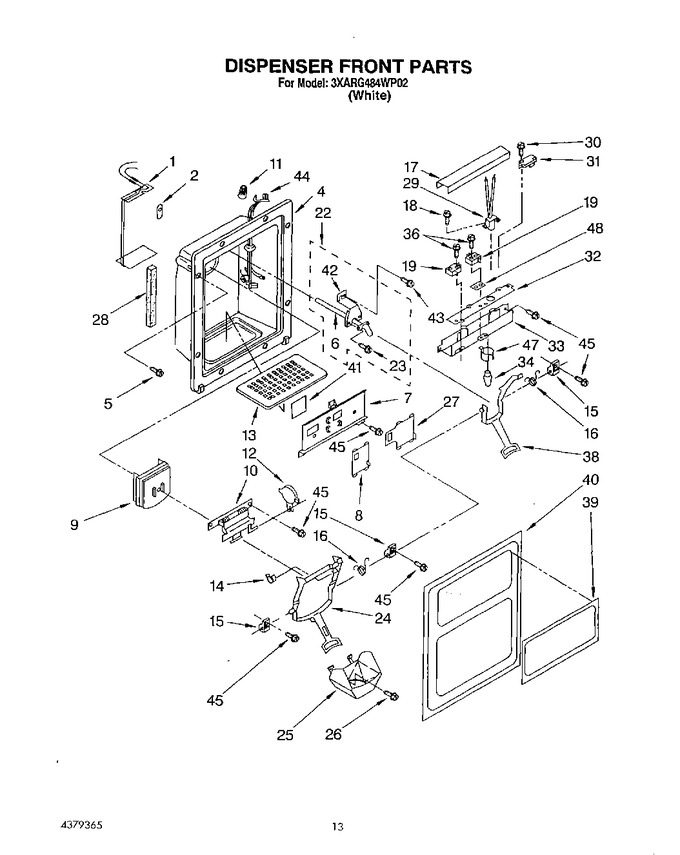

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2165241		Heater, Dispenser		Appelez-nous	-
2	987048		Grommet		Appelez-nous	-
4	1124715		Housing, Dispenser		Appelez-nous	-
5	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
6	N/A		Tube, Water (see Item No.22)		Appelez-nous	-
7	2152717		Frame, Slides		Appelez-nous	-
8	2152720		Slide, Cube/crush Switch		Appelez-nous	-
9	2147168		Door, Ice				$ 33.13
10	2147167		Door Mechanism Assembly (includes Item 9)				$ 64.67
11	227991		Wire Connector		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 223.72
13	983900		Grille, Overflow				$ 27.30
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	2147165		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw   (Replaces: 488500)				$ 11.40
19	814037		Switch, Light   (Replaces: 313125)				$ 94.88
22	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2155020)				$ 290.25
23	WP965173		Screw   (Replaces: 487916)			Immediately	$ 11.87
24	1124718		Lever, Ice Dispenser		Appelez-nous	-
25	1124730		Guide, Ice				$ 19.06
26	488892		Screw		Appelez-nous	-
27	2152726		Slide, Light Switch		Appelez-nous	-
28	482672		Seal		Appelez-nous	-
29	2147131		Lamp Holder		Appelez-nous	-
30	488361		Screw		Appelez-nous	-
31	WP2162361		Switch-water   (Replaces: 2162361)			Immediately	$ 28.71
32	2147164		Insulator, Control Bracket		Appelez-nous	-
33	2147163		Bracket, Control		Appelez-nous	-
34	989331		Bulb, Light		Appelez-nous	-
36	489155		Screw,		Appelez-nous	-
38	2159197		Lever, Water Dispenser		Appelez-nous	-
39	2167374		Plaque, Front Cover		Appelez-nous	-
40	2167376		Front Cover, Housing (includes No.39)		Appelez-nous	-
41	2147172		Heat Shield, Frame		Appelez-nous	-
42	987049		Bracket, Water		Appelez-nous	-
43	488316		Screw		Appelez-nous	-
44	2147166		Wiring Harness, Door		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 9.05
47	1129333		Shroud, Bracket		Appelez-nous	-
48	625834		Spacer				$ 7.99
