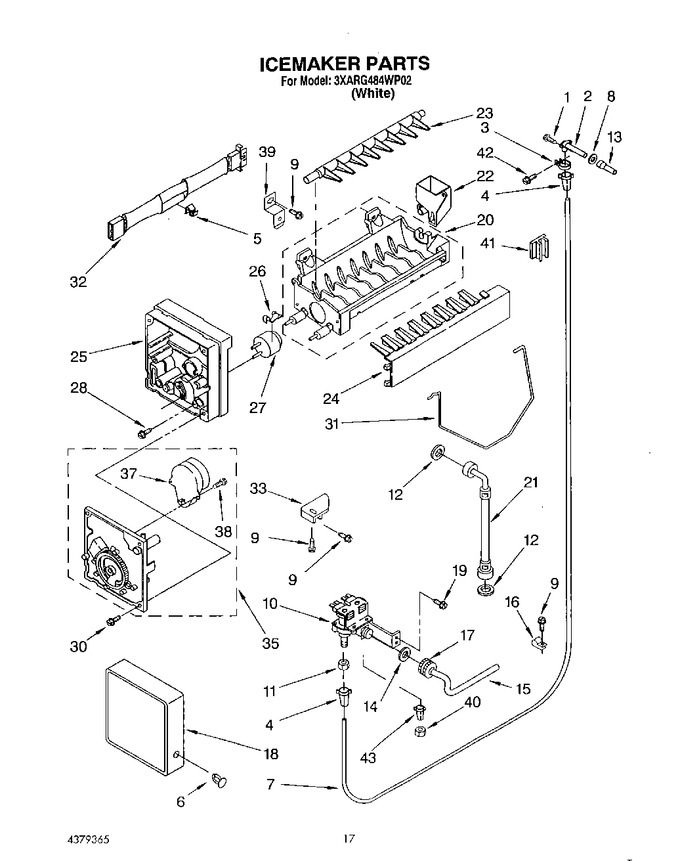

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 2 | WP2196157 | Fitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 11.99 | ||||
| 3 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 11.60 | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 7.84 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 6 | 489115 | Clip |
|
$ 5.51 | |||||
| 7 | W10823511 | Tube, Water (Replaces: 1108197) |
|
Immediately | $ 32.41 | ||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 9 | WP489478 | Screw (Replaces: 489242) |
|
$ 7.75 | |||||
| 10 | 2165238 | Valve, Solenoid |
|
- | |||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 10.97 | |||||
| 12 | 1129722 | Washer |
|
- | |||||
| 13 | 2155247 | Tube, Water Inlet |
|
- | |||||
| 14 | 628337 | Washer |
|
- | |||||
| 15 | 627860 | Tube, Inlet Valve |
|
- | |||||
| 16 | 510716 | Clamp |
|
- | |||||
| 17 | 537588 | Nut, Valve |
|
- | |||||
| 18 | 628329 | Cover |
|
- | |||||
| 19 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 20 | 628282 | Mold & Heater Assembly (also Order |
|
- | |||||
| 20 | WP542638 | Silicone Grease (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| 21 | 1129682 | European Water Connection Tube |
|
- | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 51.19 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 627788) |
|
$ 86.05 | |||||
| 25 | WP2195914 | Support (Replaces: 627790) |
|
$ 104.57 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 11.05 | |||||
| 27 | WP627985 | Thermostat (also Order) (Replaces: 627985) |
|
$ 109.18 | |||||
| 27 | 542369 | Cement Alumilastic) |
|
- | |||||
| 28 | 8533917 | Screw (Replaces: 489322) |
|
$ 13.37 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 31 | W11807379 | Shut Off Arm (Replaces: 2171593) |
|
Immediately | $ 60.20 | ||||
| 32 | WP2187464 | Harness, Wiring (Replaces: 628281) |
|
$ 124.57 | |||||
| 33 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 32.17 | ||||
| 35 | 628367 | Module Assembly (includes Items 37 & 38) |
|
- | |||||
| 37 | 628303 | Motor |
|
- | |||||
| 38 | 489136 | Screw |
|
$ 10.29 | |||||
| 39 | 2155021 | Clip |
|
- | |||||
| 40 | 1129179 | Nut, Compression |
|
- | |||||
| 41 | W11501419 | Clip (Replaces: 2154101) |
|
Immediately | $ 11.52 | ||||
| 42 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.58 | |||||
| 43 | 1129177 | Insert |
|
$ 5.27 |
