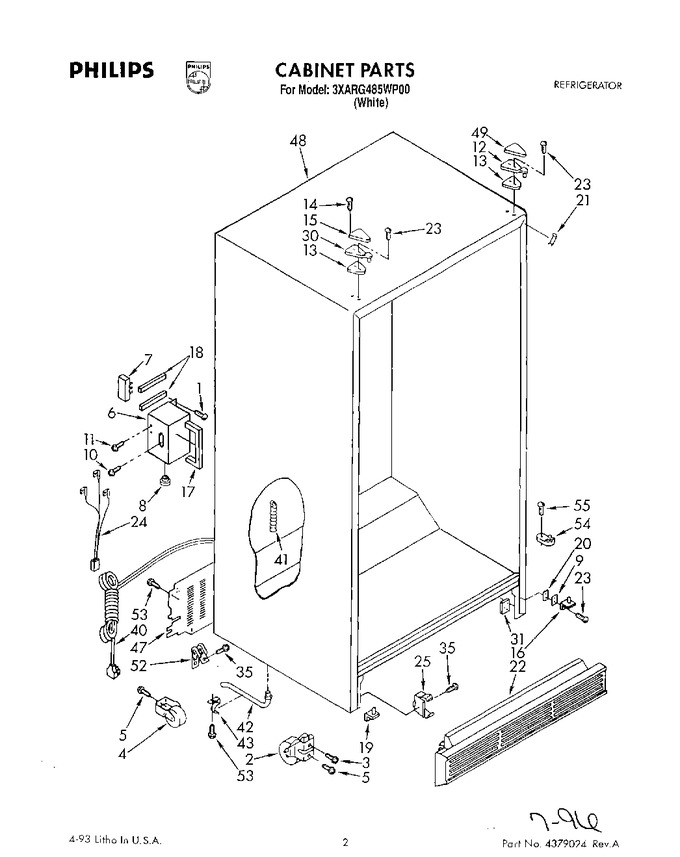

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP250830 | Screw (Replaces: 489048) |
|
$ 7.95 | |||||
| 2 | 2152011 | Front Roller (2) |
|
- | |||||
| 3 | 489393 | Screw |
|
- | |||||
| 4 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 40.17 | |||||
| 5 | 488454 | Screw, |
|
- | |||||
| 6 | 2158579 | Cover, Terminal Block |
|
- | |||||
| 7 | 1129346 | Terminal Block |
|
- | |||||
| 8 | 1129449 | Bushing |
|
- | |||||
| 9 | 836196 | Shim |
|
- | |||||
| 10 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 10.82 | ||||
| 11 | 00489346 | Screw (Replaces: 489346) |
|
$ 380.15 | |||||
| 12 | 1123514 | Hinge Top (r.h.) |
|
- | |||||
| 13 | 1123515 | Shim, Hinge Top |
|
$ 6.58 | |||||
| 14 | 489284 | Screw |
|
- | |||||
| 15 | 1129262 | Hinge Cover |
|
$ 15.75 | |||||
| 16 | 2151629 | Hinge Bottom (r.h) |
|
- | |||||
| 17 | 2158999 | Gasket |
|
- | |||||
| 18 | 2165003 | Gasket |
|
- | |||||
| 19 | 2151630 | Hinge Bottom (l.h) |
|
- | |||||
| 20 | 1129868 | Spacer, Hinge |
|
- | |||||
| 21 | 1110708 | Filler, Wrapper |
|
- | |||||
| 22 | 1125715 | Grille |
|
- | |||||
| 23 | WP999367 | Screw (Replaces: 489367) |
|
$ 7.86 | |||||
| 24 | 2209657 | Wiring Assembly (Replaces: 2165297) |
|
- | |||||
| 25 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 30 | 1123510 | Hinge, Top (l.h.) |
|
- | |||||
| 31 | 2147310 | Tap Plate (2) |
|
- | |||||
| 35 | WP489478 | Screw (Replaces: 489242) |
|
$ 7.75 | |||||
| 40 | 1129332 | Service Cord |
|
- | |||||
| 41 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 50.90 | ||||
| 42 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 31.33 | ||||
| 43 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.74 | |||||
| 47 | WP2188755 | Cover, Unit (Replaces: 2161367) |
|
$ 135.91 | |||||
| 48 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 49 | 1119787 | Hinge Cover |
|
$ 22.50 | |||||
| 52 | 489348 | Clamp, Service Cord |
|
- | |||||
| 53 | WP489464 | Screw (Replaces: 489337) |
|
Immediately | $ 7.83 | ||||
| 54 | WPW10329686 | Door Closer Lower Cam (2) (Replaces: 986759) |
|
Immediately | $ 5.43 | ||||
| 55 | WP489399 | Screw (Replaces: 489375) |
|
$ 6.95 |
