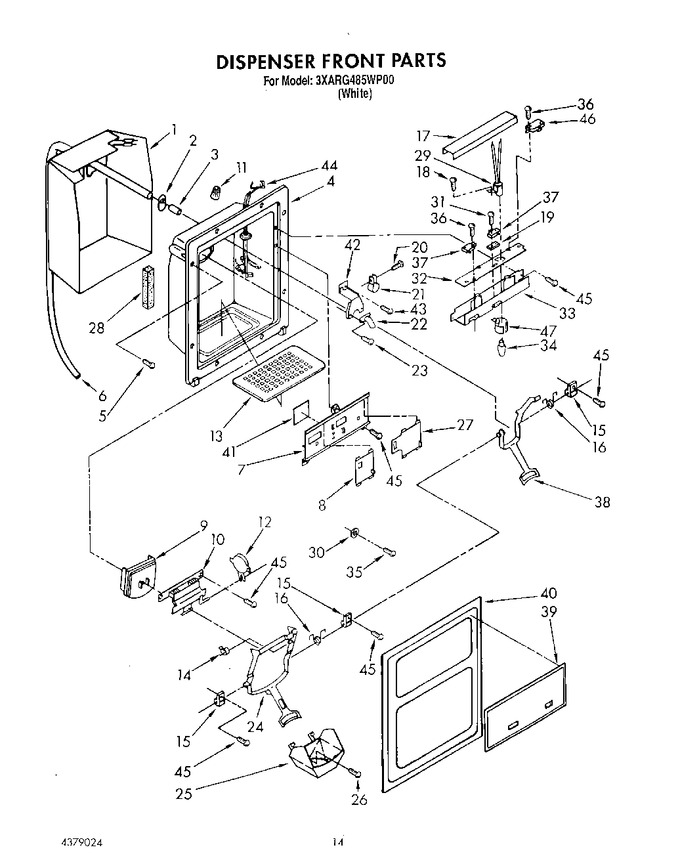

08 - Dispenser Front


09 - Unit


10 - Airflow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2165241		Heater, Dispenser		Appelez-nous	-
2	987048		Grommet		Appelez-nous	-
3	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
4	1124715		Housing, Dispenser		Appelez-nous	-
5	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
6	W10823511		Tube, Water   (Replaces: 987053)			Immediately	$ 32.41
7	2152717		Frame, Slides		Appelez-nous	-
8	2152720		Slide, Cube/crush Switch		Appelez-nous	-
9	2147168		Door, Ice				$ 33.13
10	2147167		Door Mechanism Assembly (includes Item 9)				$ 64.67
11	850145		Wire Connector		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 213.07
13	983900		Grille, Overflow				$ 27.30
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	2147165		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw   (Replaces: 488500)				$ 10.88
19	625834		Spacer, Switch				$ 7.99
20	WP488787		Screw   (Replaces: 488886)				$ 10.58
21	WP488878		Clamp   (Replaces: 488878)				$ 11.60
22	WP4388152		Fitting, Water Inlet   (Replaces: 2155056)				$ 276.43
23	WP965173		Screw   (Replaces: 487916)			Immediately	$ 10.72
24	1124718		Lever Assembly, Ice Dispenser		Appelez-nous	-
25	1124730		Guide, Ice				$ 19.06
26	488892		Screw		Appelez-nous	-
27	2152726		Slide, Light Switch		Appelez-nous	-
28	482672		Seal		Appelez-nous	-
29	2147131		Lamp Holder		Appelez-nous	-
30	489336		Washer		Appelez-nous	-
31	488361		Screw		Appelez-nous	-
32	2147164		Insulator, Control Bracket		Appelez-nous	-
33	2147163		Bracket, Control		Appelez-nous	-
34	989331		Bulb, Light		Appelez-nous	-
35	489360		Screw		Appelez-nous	-
36	489155		Screw,		Appelez-nous	-
37	814037		Switch (3)   (Replaces: 313125)				$ 90.36
38	2159197		Lever Assembly, Water Dispenser		Appelez-nous	-
39	2150318		Plaque, Front Cover		Appelez-nous	-
40	2150313		Front Cover, Housing (includes Item 39)		Appelez-nous	-
41	2147172		Heat Shield, Frame		Appelez-nous	-
42	987049		Bracket, Water		Appelez-nous	-
43	488316		Screw		Appelez-nous	-
44	2147166		Wiring Harness, Door		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 7.84
46	841336		Switch, Water		Appelez-nous	-
47	1129333		Shroud, Bracket		Appelez-nous	-
